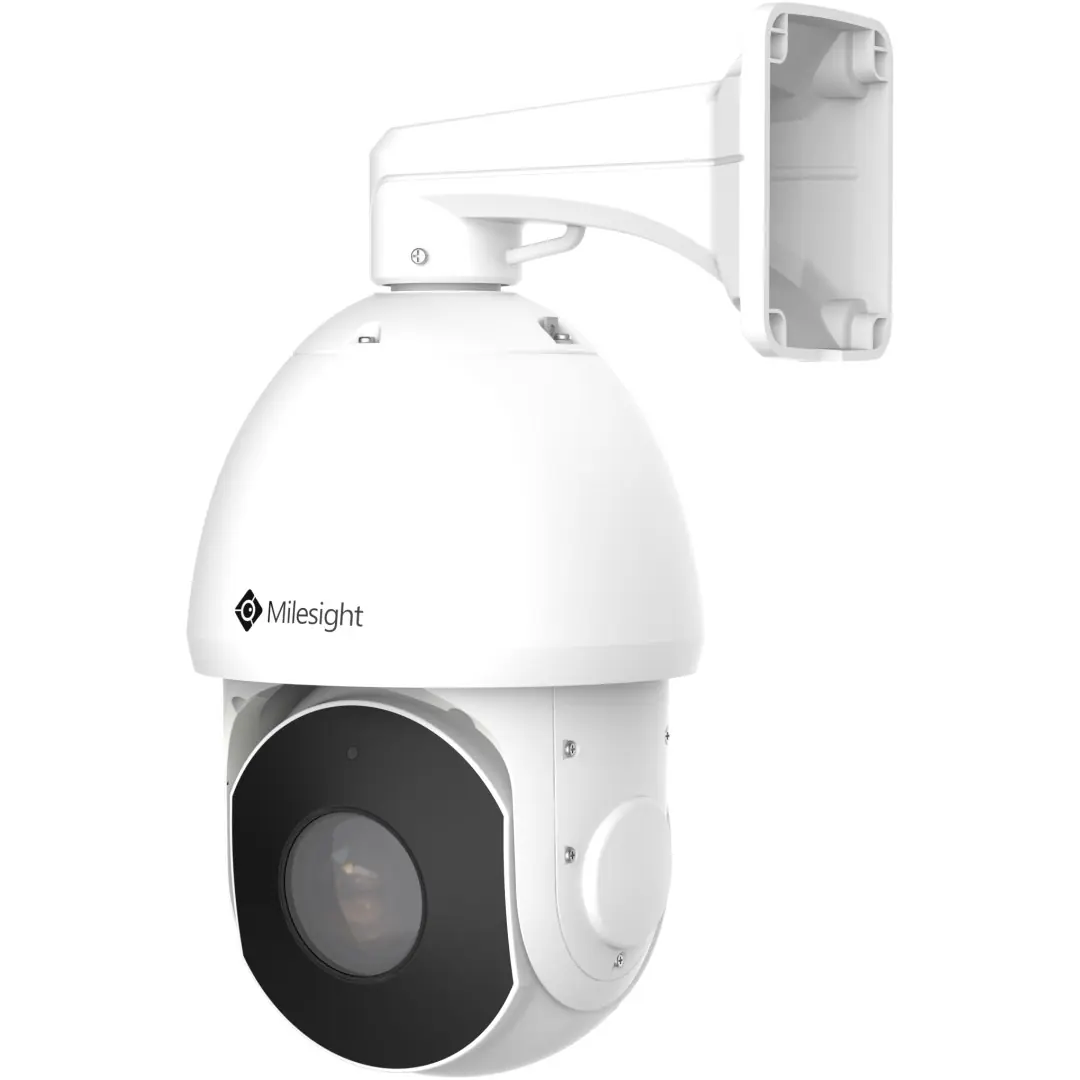

The TS4441-X36RPE is a professional-standard 4MP PTZ outdoor surveillance camera designed to provide long-range surveillance, accurate zoom control, and AI-driven video analytics for high-security outdoor use cases. With its advanced 36X optical zoom, AI-powered object detection, and pan-tilt-zoom capability, this camera provides excellent performance for large-area monitoring, such as perimeter protection, critical infrastructure, city surveillance, and transportation stations.

Engineered for around-the-clock operation in the toughest conditions, the TS4441-X36RPE features smart IR night vision, IP66 weatherproofing, and PoE+ capability for reliable and solid performance both day and night.

4MP Ultra-Clear Resolution for High-Detail Surveillance

The TS4441-X36RPE PTZ camera is equipped with a 1/2.8" progressive CMOS sensor and has the ability to deliver up to 2560 x 1440 resolution at 30 frames per second. Such high-resolution output allows operators to achieve high-quality crystal-clear images, which are essential for facial recognition, license plate reading, and activity analysis.

Highlights of Image Quality:

• 4MP resolution (2560 x 1440 @ 30fps)
• True WDR up to 120dB
• 3D DNR and BLC for best-in-class imaging
• Sharp detail in both daylight and low-light scenes

This added clarity makes the TS4441-X36RPE perfect for situations in which exact visual documentation and identification are of utmost importance.

36X Optical Zoom with Precision Autofocus

With a high-tech 36X optical zoom lens, the TS4441-X36RPE enables users to get close to far-away objects without any pixelation or loss of clarity. Its motorized zoom and autofocus mechanism provides smooth operation and crisp imagery, even at full zoom.

Zoom Capabilities:

• Focal length: 5.7–205.2mm
• Wide-angle to telephoto coverage
• Autofocus tracking with seamless zoom
• Ideal for parking lots, border security, and airports

This long-range zoom is essential for monitoring vast areas such as ports, airfields, freeways, and logistics yards.

AI Video Analytics for Intelligent Threat Detection

The TS4441-X36RPE features integrated AI analytics, enabling smart event detection and reducing false alarms. It can accurately differentiate between humans, vehicles, and irrelevant motion like trees or animals, making it highly effective for critical event monitoring.

AI Capabilities:

• Intrusion and line-cross detection
• Region entrance/exit monitoring
• Human and vehicle recognition
• Auto-tracking with event triggers

These sophisticated features enable security teams to respond fast and smartly, maintaining an active security stance.

Pan-Tilt-Zoom Functionality for 360° Coverage

Movement Details:

• 360° continuous pan
• 90° tilt with auto flip
• Maximum of 300 presets and 8 patrols
• High-speed pan/tilt response

This mobility provides complete coverage of large locations through a single camera.

High-Power IR Night Vision – 250 Meters

To ensure protection at all times of the day, the TS4441-X36RPE is fitted with adaptive IR LEDs offering night vision capability up to 250 meters. Smart IR automatically adjusts IR intensity, preventing overexposure and maintaining visibility in complete darkness.

Night Vision Capabilities:

• IR range: Up to 250m
• Day/Night mode with IR-cut filter
• Automatic IR brightness control
• Clear black-and-white image in zero light

Best suited for rural monitoring, perimeter fences, and border areas with diverse lighting environments.

Rugged Construction with IP66 Weather Proofing

Durable Features:

• Weather-proof enclosure
• Extensive temperature range support (-40°C to +60°C)
• Outdoor surge protection
• Vandal-resistance construction

From rural installations to city deployments, this camera weathers the elements with no problem.

Easy Integration & PoE+ Support

The TS4441-X36RPE is Power over Ethernet Plus (PoE+) capable, making installation simple by providing power and data over a single cable. It's also ONVIF-compliant, allowing easy integration with a variety of NVRs and VMS platforms.

Connectivity & Compatibility:

• PoE+ (IEEE 802.3at) and 24V AC power options
• ONVIF Profiles S/G/T supported
• Supports major VMS software
• RTSP, HTTPS, SNMP, and API support

This renders it extremely versatile to apply in new installations or to upgrade installed networks.

Applications of the TS4441-X36RPE

With its powerful 36X optical zoom, advanced AI-driven video analytics, and robust weather-resistant construction, the TS4441-X36RPE is engineered to excel in mission-critical surveillance environments that require a high level of accuracy, resilience, and wide-area monitoring. Whether deployed in urban security grids, critical infrastructure, transportation facilities, or large industrial complexes, this PTZ camera delivers precise long-range monitoring capabilities, enabling users to zoom in on distant objects without compromising image clarity. Ideal Use Cases:

• Airport and transportation security
• City-wide surveillance and traffic control
• Seaport and logistics monitoring
• Border security and perimeter patrols
• Energy industry and utility plant security
• Corporate and industrial complex monitoring

Regardless of whether it's watching a highway intersection, industrial facility, or government complex, this camera delivers unparalleled performance and intelligence.

Why Select the TS4441-X36RPE?

The TS4441-X36RPE 4MP PTZ IP camera is the ultimate fusion of high-definition imaging, smart automation, and outdoor resilience. With 36X optical zoom, 250m night vision, and AI-driven detection capabilities, it is a priceless asset for today's security teams, city governments, and large organizations seeking to protect their valuables with precision and assurance.

With PoE+ support, 360° PTZ capability, and simple third-party integration, the TS4441-X36RPE is an future-proof surveillance solution designed to evolve with changing threats and growing coverage requirements.

Specifications

Camera

Name AI Road Traffic Speed Dome Camera

Image Sensor 1/1.8″ Progressive Scan CMOS

Min. Illumination Color: 0.002Lux @F1.55, B/W: 0Lux with IR on

WDR 140dB Super WDR Pro

Shutter Time 1/100000s∼1s

Day/Night Mode Day/Night/Auto/Customize/Schedule

Illumination Distance Up to 300m

S/N >55dB

Lens

Focal Length 5.7∼205.2mm, 36X Optical Zoom

Zoom Speed Approx 7s(Wide-Tele)

Field of View H63°∼H3°/D69°∼D3°/V38°∼V1°

Focus Control Auto/Semi-Auto/Manual

Minimum Working Distance 1500/1500mm (Wide/Tele)

Aperture F1.55∼F4.8

Iris Control Auto

Road Traffic Management

Max. Vehicle Speed 120km/h

Recognition Accuracy >95%

Coverage 2 lanes

Country Region Supported More than 80 countries and regions

ANPR Distance Up to 390m during the day; Up to 180m during the night with illumination

Attributes Identification Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture

Smart Traffic Function Evidence Camera Linkage, Vehicle Counting Based on Vehicle Type, Specific Lane Management

White/Black List Up to 20,000 records inside the camera

LPR Smart Search Support

Interface

Ethernet 1*RJ45 10M/100M Ethernet Port

Audio I/O 1/1

Alarm I/O 4/2

RS485 Support

PTZ

Pan Range/Pan Speed 360° endless/ Pan Manual Speed: 0.1°∼250°/s, Pan Preset Speed: 250°/s

Tilt Range/Tilt Speed -5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.5°∼160°/s, Tilt Preset Speed: 160°/s

Proportional Zoom Support

Preset Quantity 300

Patrol 8 Patrols, up to 48 presets each patrol

Pattern 4 Patterns

Power Off Memory Support

Other Function Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position

Video

Max. Image Resolution 2688x1520

Primary Stream 60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)

50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)

Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)

50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)

Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240)

50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240)

Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG

Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)

Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)

ROI Up to 8 areas

Image Settings Saturation/Brightness/Contrast/Sharpness

Network

Network Storage NAS(Support NFS, SMB/CIFS), ANR

Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

Audio

Audio Compression G.711/AAC/G.722/G.726

Audio Sampling Rate 8/16/32/44.1/48KHz

Audio Bit Rate 16~256kbps

Two-way Audio Support

System

System Compatibility API, HTTP, TCP, ONVIF Profile G & M & S & T

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB

Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark

SIP/VoIP Support Yes, Voice&Video-over-IP

Event Trigger Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.

Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.

General

Working Temperature -40℃~60℃

Working Humidity 0~95%(Non-condensing)

Power Supply PoE(802.3at)/ AC 24V/3A ±10%

Power Consumption 13W MAX/ 23W MAX(With IR on)

Weather Proof/Housing Up to IP66-rated for Weather-resistant Performance / Vandal-proof IK10-rated Metal Housing(Optional)

Heater Support

Wiper(Optional) Support

Surge Protection 6KV

Dimensions/Weight Φ205mmX308mm/4Kg

Warranty 2 Years/3 Years(Optional)
