The TS4466-X4RPE is a high-quality professional 4MP PTZ IP camera suited for premium video surveillance in extensive outdoor areas. Equipped with a 30X optical zoom, AI-driven analytics, intelligent infrared night vision, and PoE+ technology, the camera provides unparalleled flexibility, accuracy, and picture quality.

Perfect for uses like public safety, industrial monitoring, traffic surveillance, city surveillance, airports, and commercial buildings, the TS4466-X4RPE provides end-to-end reliable, smart, and 24/7 surveillance efficiency.

4MP Ultra-HD Resolution for Sharp, Clear Surveillance

At its heart, the TS4466-X4RPE is fitted with a 1/2.8" progressive scan CMOS sensor, providing 4-megapixel (2560 x 1440) ultra-high-definition video. The resolution guarantees that features such as faces, license plates, and movements are captured accurately and in detail, even from a distance.

Key Features:

• True 4MP UHD (2560 x 1440) resolution
• Real-time 30/60fps video output
• H.264 / H.265 / H.265+ compression
• True WDR (120dB) for robust backlight management

With great image clarity, the TS4466-X4RPE is best suited for forensic video examination at high levels of detail and real-time surveillance.

30X Optical Zoom with Sophisticated PTZ Capability

Zoom & Control Features:

• 30X optical / 16X digital zoom
• 360° continuous pan, auto-flip support
• Preset, patrol, and pattern tours
• Speed-adjustable PTZ movement

Perfect for broad perimeters, highways, or industrial areas, the TS4466-X4RPE assists you in monitoring and following activity with pinpoint precision.

Smart AI-Powered Video Analytics

AI Functions Include:

• Human/vehicle classification
• Intrusion detection
• Line crossing detection
• Face detection and smart tracking
• Region entrance/exit alerts

These cutting-edge analytics make it ideal for enterprise-scale surveillance systems where responsiveness and accuracy are a must.

150M Smart IR Night Vision for 24/7 Surveillance

This PTZ outdoor IP camera comes equipped with robust infrared LEDs using Smart IR technology that dynamically adjusts the intensity in response to object distance. It provides unobstructed imaging in lowlight and total darkness up to 150 meters.

Night Vision Highlights:

IR distance of up to 150 meters

IR cut filter for day/night switching

Smart IR to avoid overexposure

24/7 visibility in any environment

Regardless of the time, the TS4466-X4RPE provides total visual coverage.

Outdoor Tough with IP66 Weatherproofing

Built for rugged durability and reliable performance in extreme environments, the TS4466-X4RPE outdoor PTZ camera features a robust IP66-rated metal housing that is fully resistant to dust, heavy rain, moisture, and other harsh environmental conditions. This weatherproof construction ensures long-term operation in challenging outdoor settings—whether it’s mounted in desert regions with intense heat and sand exposure, industrial zones with airborne debris and vibration, or coastal towns prone to humidity, salt, and corrosion. Engineered to thrive in tough conditions, the TS4466-X4RPE delivers uninterrupted surveillance regardless of weather, making it an ideal solution for critical infrastructure security, transportation hubs, municipal surveillance, and large-scale perimeter protection. Environmental Resistance:

• Operating range: -40°C to +60°C
• IK10-rated vandal-resistant housing
• Integrated heater and fan
• Surge/lightning protection

This durable PTZ camera is perfect for critical infrastructure and outdoor surveillance applications.

Power over Ethernet (PoE+) and Easy Installation

The TS4466-X4RPE PTZ camera is PoE+ (IEEE 802.3at) compliant, enabling both power and data to be transmitted via a single Ethernet cable. This saves installation time and infrastructure costs.

Installation & Integration:

• PoE+ and 24VAC dual power support
• Compatible with NVR and VMS platforms
• Web interface for configuration
• Remote access via mobile app

Flexible mounting configurations include wall, ceiling, pole, and corner mounts, accommodating flexible placement in any surveillance application.

ONVIF Compatibility and Network Integration

The TS4466-X4RPE is a fully ONVIF-compliant (Profile S, G, T) camera, featuring RTSP for ensuring compatibility with a large variety of third-party VMS systems, NVRs, and cloud platforms.

Integration Support:

• ONVIF Profiles S/G/T
• Remote firmware updates
• Secure HTTPS and SNMP support
• Cross-platform accessibility

Whether you are integrating with a current video management system or deploying a new network, this camera integrates easily into your infrastructure.

Best Use Cases for TS4466-X4RPE PTZ Camera

The TS4466-X4RPE AI-powered PTZ surveillance camera is strategically designed for medium to large-scale security deployments, offering the perfect balance of high-resolution imaging, 30X optical zoom, and advanced AI-driven analytics. This combination of features makes it exceptionally well-suited for environments that demand robust, intelligent monitoring across wide areas, such as airports, logistics hubs, industrial facilities, city surveillance grids, and large commercial complexes. Its ability to deliver crisp, detailed visuals from afar, paired with real-time detection of individuals, vehicles, and behavioral anomalies, enhances situational awareness and response times in high-demand surveillance scenarios. Typical Applications:

• City surveillance/traffic intersections
• Public infrastructure & critical utilities
• Airports, railways, and transportation hubs
• Universities and school campuses
• Retail, shopping centers, and big warehouses
• Industrial areas and oil & gas sites

Why the TS4466-X4RPE?

If you require a high-resolution, long-range PTZ camera that integrates AI-driven intelligence, infrared night vision, and outdoor toughness, the TS4466-X4RPE is the best choice. With superior zoom, precise motion detection, and wide-area surveillance, it offers trustworthy protection in public and private settings.

Specifications

Camera

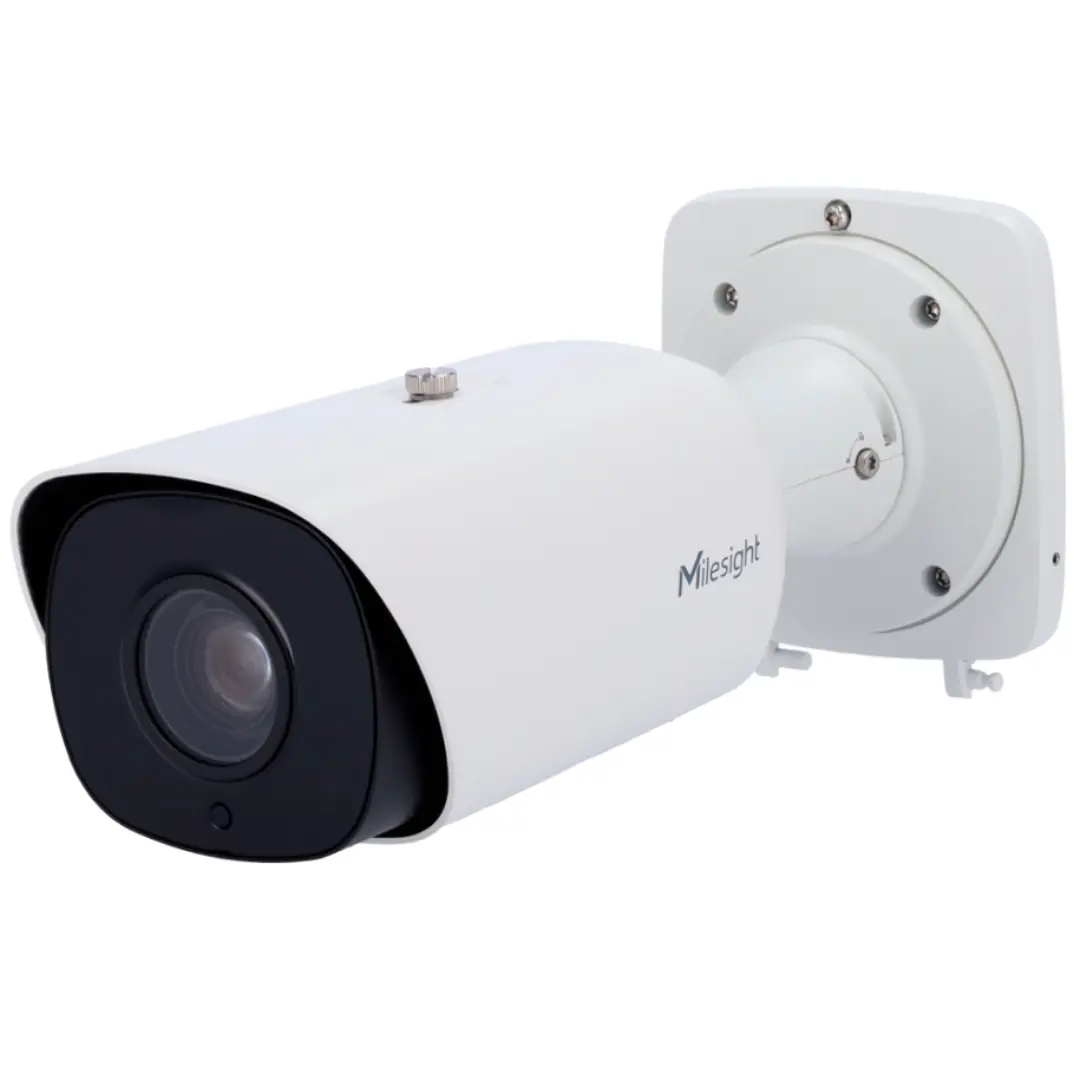

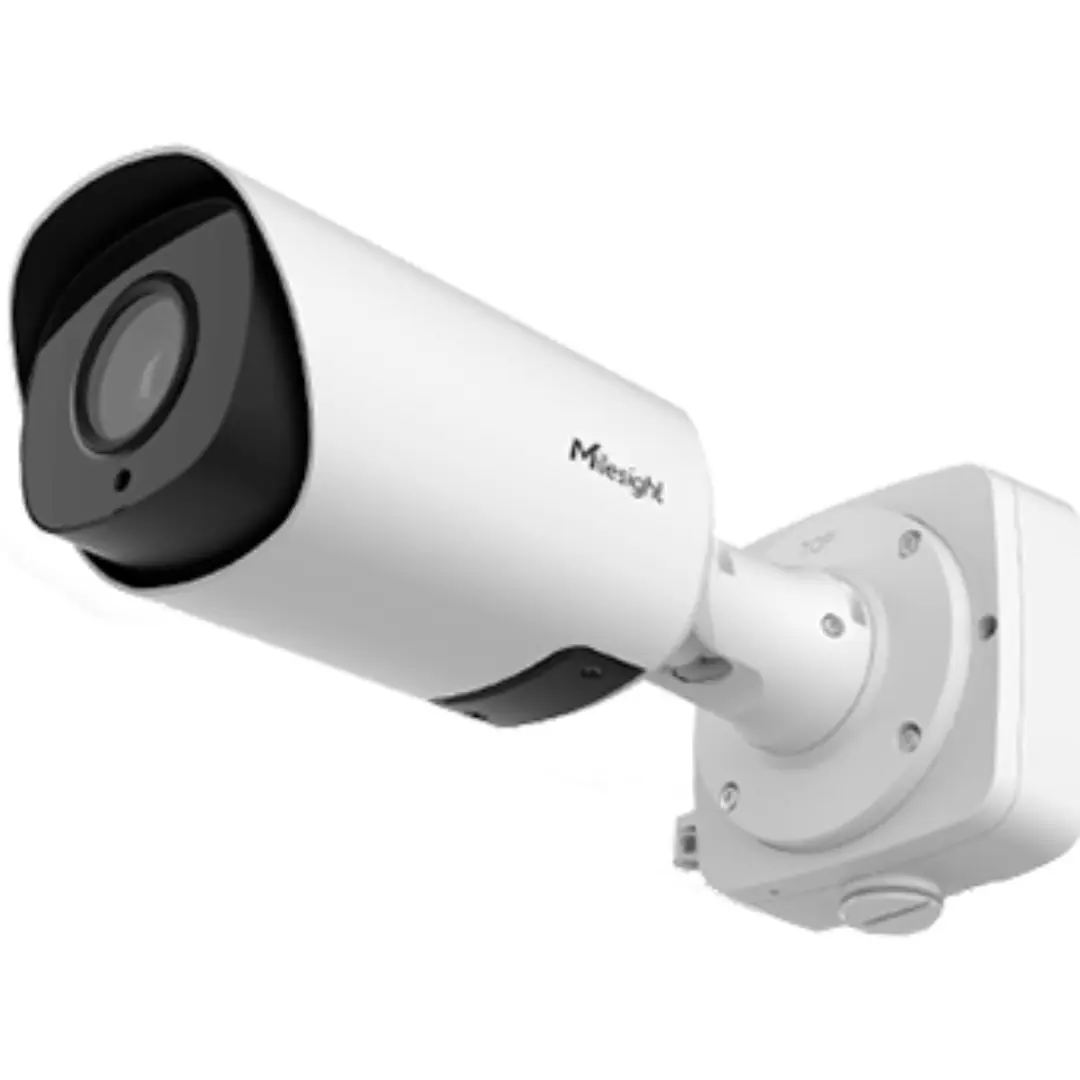

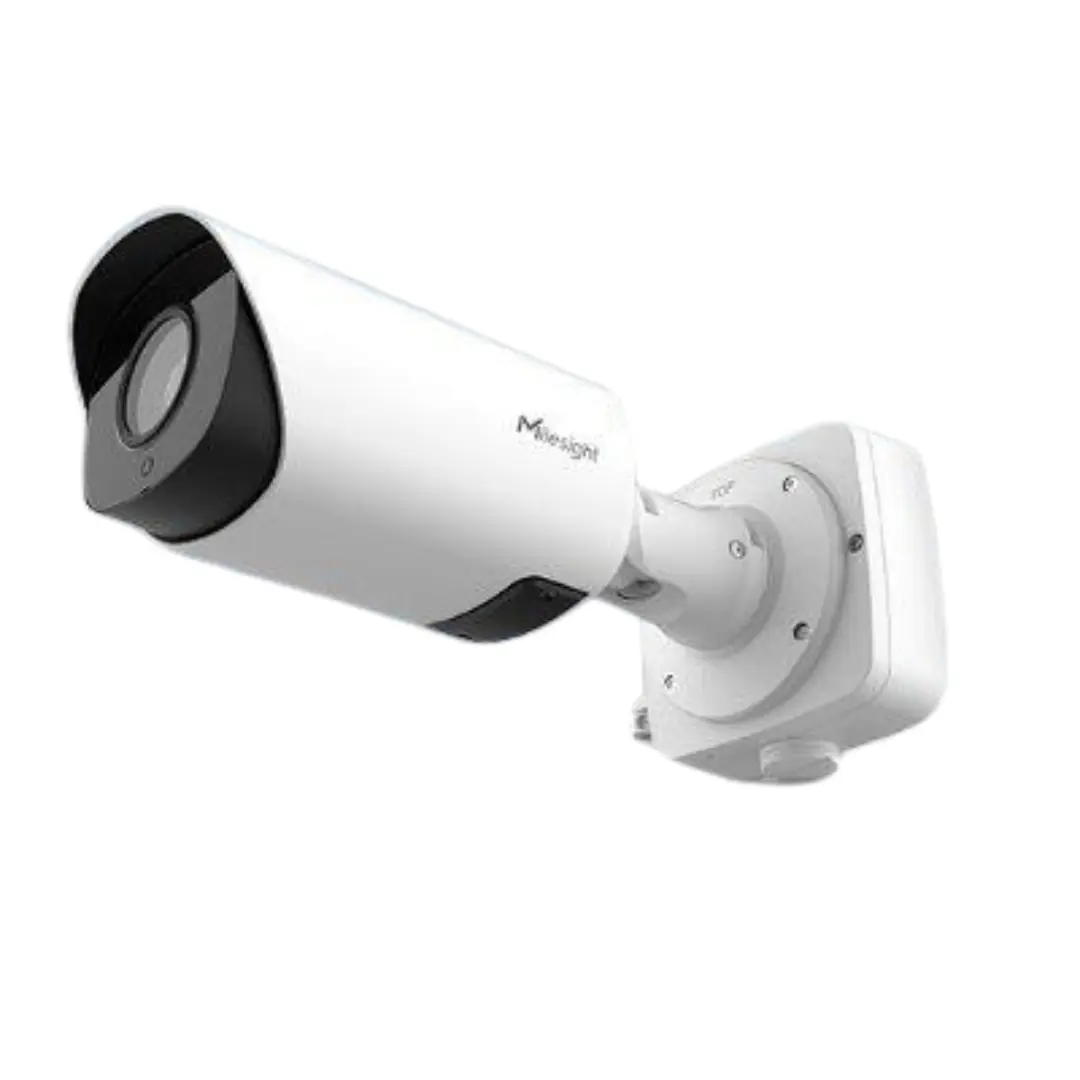

Name: AI Road Traffic Pro Bullet Plus Camera

Image Sensor 1/1.8″ Progressive Scan CMOS

Min. Illumination Color: 0.005Lux@F1.6

B/W: 0Lux with IR on

WDR 120dB Super WDR

Shutter Time 1/100000s~1s

Day/Night Mode, Day/Night/Auto/Customize/Schedule

IR Wave Length 850nm (Default); 740nm (Optional)

Illumination Distance Up to 180m

S/N >55dB

Lens

Lens 8~32mm, 4X Optical Zoom

Field of View H44°~H13°/D51°~D15°/V25°~V7°

Mount Φ14

Focus Control Auto/Manual

Aperture F1.6~F1.7

Iris Control Auto

Road Traffic Management

Max. Vehicle Speed 120km/h

Recognition Accuracy >95%

Coverage 2 lanes

Country Region Supported More than 80 countries and regions

ANPR Distance Up to 95m during the day; Up to 45m during the night with illumination

Attributes: Identification Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand,

No-plate Vehicle Capture, Vehicle Direction Detection

Smart Traffic Function Evidence Camera Linkage, Specific Lane Management

White/Black List Up to 20,000 records inside the camera

LPR Smart Search Support

Interface

Ethernet 1*RJ45 10M/100M Ethernet Port

Audio I/O 1/1

Alarm I/O 1/1 (Integrated Cable Version) 2/2 (Cable Out Version)

Video

Max. Image Resolution 2688x1520

Primary Stream 60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)

50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)

Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)

50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)

Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240)

50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240)

Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG

Video Bit Rate 16Kbps~16Mbps(CBR/VBR Adjustable)

Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)

ROI Up to 8 areas

Image Setting Brightness/Contrast/Saturation/Sharpness

Network

Network Storage NAS(Support NFS, SMB/CIFS), ANR

Protocol IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

Audio

Audio Compression G.711/AAC/G.722/G.726

Audio Sampling Rate 8/16/32/44.1/48KHz

Audio Bit Rate 16~256kbps

Two-way Audio Support

System

System Compatibility API, HTTP, TCP, ONVIF Profile G & M & S & T

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB

Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC,

Anti-flicker, Corridor Mode, Deblur, Watermark

SIP/VoIP Support Yes, Voice & Video-over-IP

Event Trigger Black/White List, Attributes Event, Motion Detection,

Network Disconnection, External Input, Audio Alarm, etc.

Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc

General

Working Temperature -40℃~60℃

Working Humidity 5~90%(Non-condensing)

Power Supply PoE (802.3at) / DC 12V±10%

Power Consumption 8W MAX

13W MAX (With IR on)

Weather Proof Up to IP67-rated for Weather-resistant Performance

Housing Vandal-proof IK10-rated Metal Housing

Surge Protection 4KV

Weight 1623g

Dimensions 320mmX134mmX171mm

Warranty 3/5 Years
