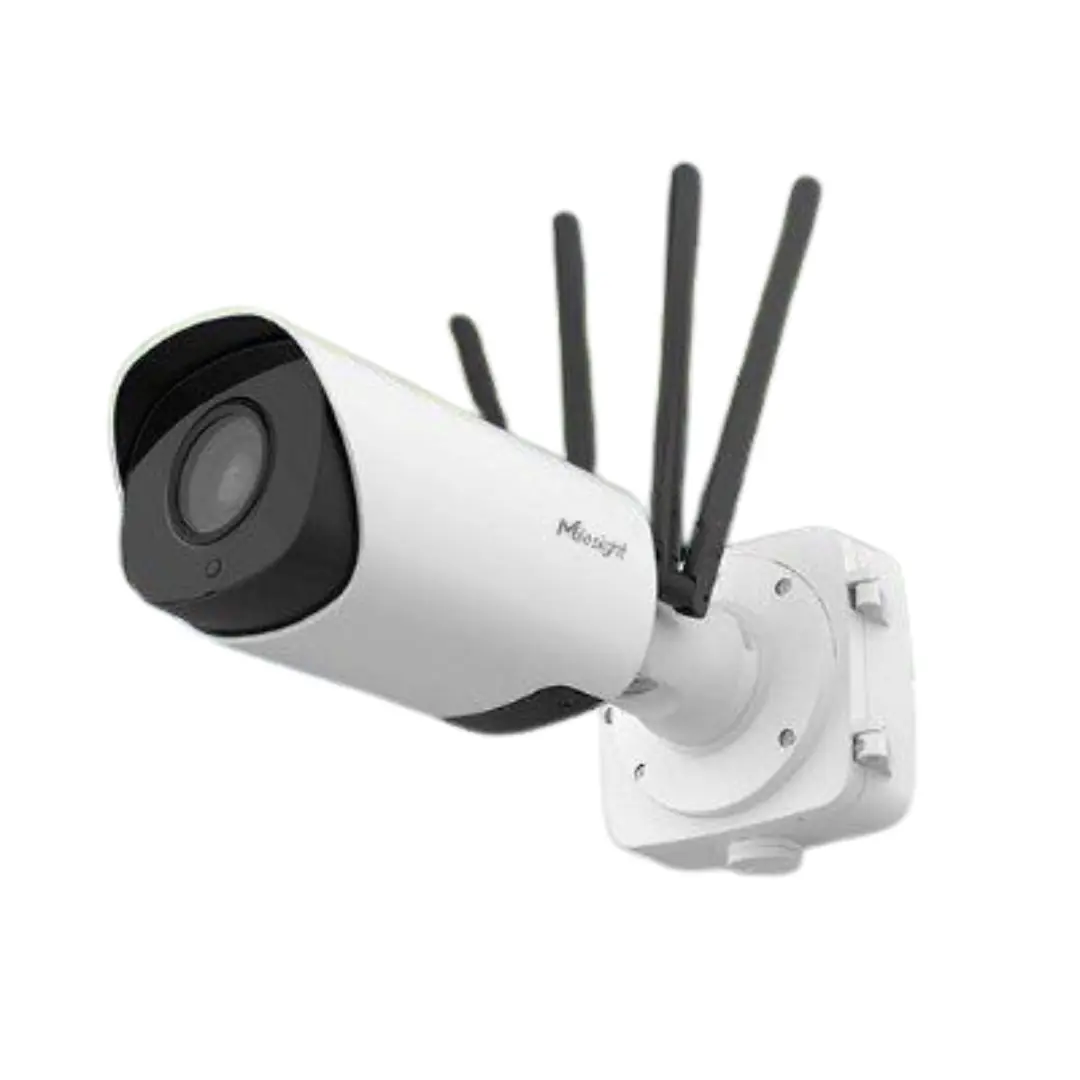

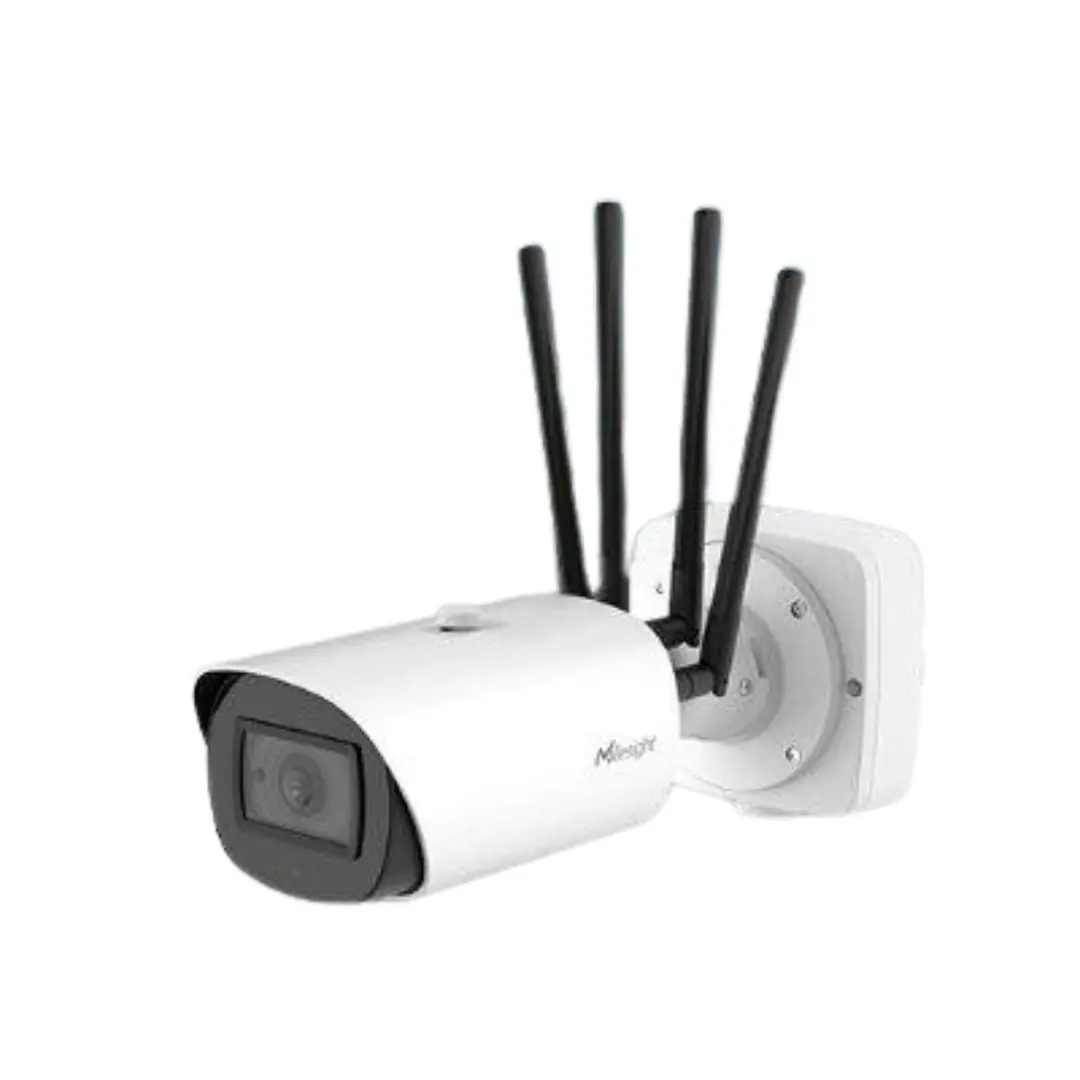

5G AIoT 4X/12X Pro Bullet Plus Network Camera

The MS-C2966-X12R(T)GOPC PTZ Network Camera is an advanced surveillance system that provides high-precision, high-power, and high-feature functionality for sophisticated security systems. Equipped with a smart AI-powered video analysis engine, extreme 2MP resolution, and a high-fidelity 12x optical zoom, this camera is designed to address the challenges of large-scale monitoring applications such as public places, parking garages, airports, transport stations, industrial fences, and infrastructure.

Built for rugged performance, this camera boasts outdoor-ready weatherproof housing, superior night vision technology, and a range of smart features that ensure round-the-clock protection. Whether you're upgrading an existing system or deploying a new network, the MS-C2966-X12R(T)GOPC offers unmatched reliability, versatility, and detail-focused surveillance.

Full HD 2MP Resolution for Crystal-Clear Footage

With its 2MP (1920 x 1080) full HD resolution, the MS-C2966-X12R(T)GOPC provides clear video quality that supports precise object recognition and scene details, even in high-speed environments. It features a progressive scan CMOS sensor that reduces motion blur and distortion. The clarity makes it suitable for perimeter zone monitoring, parking lots, city streets, and commercial areas.

Whether recording license plates, monitoring individuals, or monitoring large areas, this high-resolution PTZ camera guarantees each frame is clear and valuable for evidence or real-time analysis.

12x Optical Zoom with Precision Control

One of the MS-C2966-X12R(T)GOPC's best features is its robust 12x optical zoom lens, which provides seamless and precise zooming without compromising image quality. This makes it possible for the camera to scrutinize faraway objects closely—ideal for expansive areas such as industrial complexes, campuses, ports, and shopping malls.

Coupled with its Pan-Tilt-Zoom (PTZ) function, operators can control the view of the camera remotely in real-time, monitoring a broad area of surveillance with precision accuracy.

AI-Driven Smart Video Analytics

With AI video analytics, the MS-C2966-X12R(T)GOPC provides smart event detection that boosts security operations. The camera is able to detect and classify human and vehicle traffic, minimize false alarms, and support features like:

• Intrusion detection
• Line crossing detection
• Face detection
• People counting
• Auto-tracking

These AI functionalities make the camera ideal for smart city surveillance, critical infrastructure monitoring, and enterprise-level security systems, where accuracy and automated response are a must.

True Day/Night Capability with Smart IR

For a 24/7 monitoring capability, the MS-C2966-X12R(T)GOPC is equipped with smart IR and true day/night switching, enabling it to produce high-quality images even in complete darkness. Its integral infrared illuminators provide visibility up to far distances at night to guarantee effective security irrespective of the light conditions.

The low-light sensitivity and wide dynamic range (WDR) also ensure smoother footage in intricate lighting conditions like parking garages, building entrances, and backlit environments.

Rugged Outdoor Protection – IP66 & IK10 Rated

Designed for rough environments, the camera boasts a vandal-resistant IK10 housing and a weatherproof IP66 rating. It resists extreme weather conditions such as rain, dust, wind, and freezing temperatures. This positions the MS-C2966-X12R(T)GOPC for outdoor perimeter defense, industrial areas, borders, and municipal buildings.

Its rugged design guarantees long-term operation without sacrificing anything, minimizing maintenance and maximizing security system uptime.

PTZ Control & Smart Auto-Tracking

The high-end PTZ system enables 360° horizontal rotation and 90° vertical tilt, providing complete area coverage. The auto-tracking function intelligently tracks moving objects (such as a person or vehicle) automatically in the view area, leaving nothing unseen.

Pre-programmed patrol routes and real-time alerts are sent via the integrated video management system (VMS) or NVR for smart surveillance management.

Power over Ethernet Plus (PoE+) and Easy Integration

MS-C2966-X12R(T)GOPC features support for PoE+ (Power over Ethernet Plus), which facilitates installation by combining power and data on one Ethernet cable. Installation time and expense are saved by this, particularly in massive implementations where numerous cameras are required.

ONVIF support enables the camera to easily integrate into third-party systems, making it convenient for integration into current surveillance systems.

The MS-C2966-X12R(T)GOPC PTZ Network Camera redefines smart surveillance with its fusion of AI video analytics, accurate zoom, rugged outdoor construction, and state-of-the-art PTZ control. Ideally suited for high-risk and large-scale environments, it offers unparalleled performance and dependability for mission-critical security deployments.

Whatever your objective—indeed, whatever your perimeter, traffic, or urban surveillance challenges may be—this camera represents a valuable investment in next-generation safety infrastructure.

Specifications

MS-C2966-X12R(T)GOPC

MS-C8266-X4GOPC

Camera

Name 2MP 5G AIoT 12X Pro Bullet Plus Network Camera

Image Sensor 1/2.8" Progressive Scan CMOS

Min. Illumination Color: 0.005Lux @F1.6, B/W: 0Lux with IR on

WDR 140dB Super WDR (Super WDR Pro is optional for T Series)

Shutter Time 1/100000s∼1s

Day/Night Mode Day/Night/Auto/Customize/Schedule

IR Distance Up to 180m

S/N >55dB

Lens

Lens 5.3~64mm, 12X Optical Zoom

Field of View H61°~H5°/D69°~D5°/V36°~V2°

Mount Φ14

Focus Control Auto/Manual

Aperture F1.6~F2.8

Iris Control Auto

Video

Max. Image Resolution 1920x1080

Frame Rate 60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)

50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)

Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)

50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)

Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)

50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)

Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG

Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)

Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)

ROI Up to 8 areas

Image Settings Saturation/Brightness/Contrast/Sharpness

Web Access Support IE/Firefox/Chrome/Safari Browser

Audio

Audio Compression G.711/AAC/G.722/G.726

Audio Sampling Rate 8/16/32/44.1/48KHz

Audio Bit Rate 16~256kbps

Two-way Audio Support

Interface

Ethernet 1*RJ45 10M/100M Ethernet Port

Audio I/O 1/1

Alarm I/O 1/1

Mobile Communication Parameter

Wireless Communication Support 5G/4G/3G

Frequency Bands 5G NR: n1/n2/n3/n5/n7/n8/n12/n20/n28/n41/n66/n71/n77/n78/n79

LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21(TBD)/ B25/B26/B28/B29/B30/B32/B66/B71

LTE-TDD: B34/B38/B39/B40/B41/B42/B48

LAA: B46

WCDMA: B1/B2/B3/B4/B5/B6/B8/B19

Wireless Transmission Speed SA: DL 3.3Gbps; UL 250Mbps

NSA: DL 3.4Gbps; UL 200Mbps

LTE: DL 2.0Gbps; UL 150Mbps

WCDMA: DL 42Mbps; UL 5.76Mbps

GNSS:GPS/GLONASS/BeiDou/Galileo

SIM Card Nano SIM

LoRaWAN®

Antenna 1*50ΩSMA-Female External Antenna Connector

Channel 8 channels simultaneously

Demodulation 1Mhz

Frequency Band CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923/AS923-2

Sensitivity -140dBm Sensitivity @292bps

Output Power 27dBm Max

Protocol V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C

Communication Range Up to 15km

Network

Network Storage NAS(Support NFS, SMB/CIFS), ANR

Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

Intelligent Analytics

Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed

Face Detection Detect and capture faces, get real-time snapshots

People Counting& Report Count the number of people entering or exiting,

up to 4 detection areas for regional people counting

System

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G

Advanced Function Heat Map,BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark

SIP/VoIP Support Yes, Voice&Video-over-IP

Event Trigger IoT Sensor Alarm,Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.

Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc

System Compatibility ONVIF Profile G & Q & S & T, API

General

Working Temperature -40℃∼60℃

Working Humidity 0∼90%(Non-condensing)

Power Supply PoE (802.3at) / DC 12V±10%

Power Consumption 10W MAX, 16W MAX (With IR on)

Surge Protection 4KV

Weather Proof Up to IP67-rated for Weather-resistant Performance (Only for camera body)

Dimensions 320mmX134mmX126mm, 320mmX134mmX292mm (With 5G Antennas)

Weight 1636g

Warranty 3/5 Years
