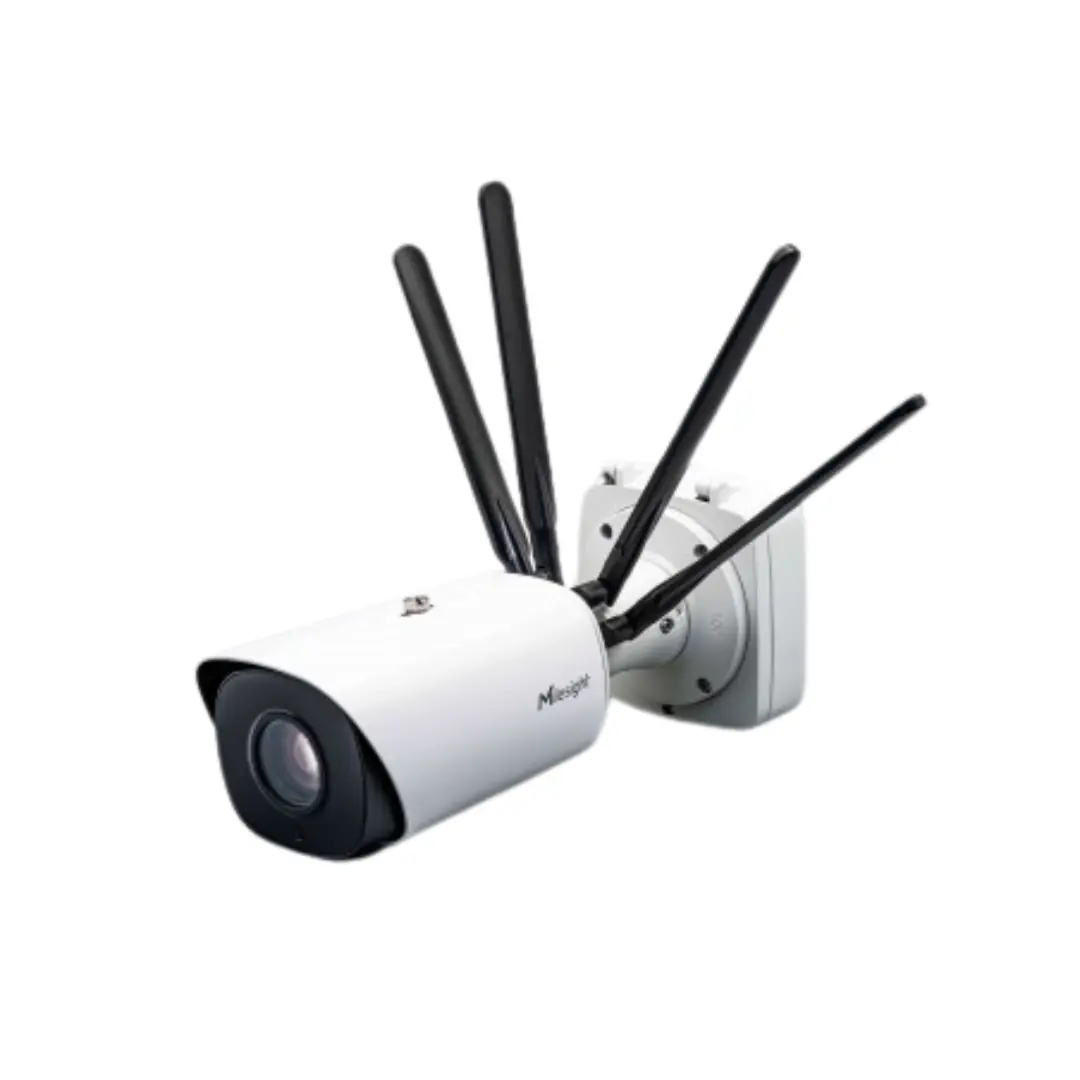

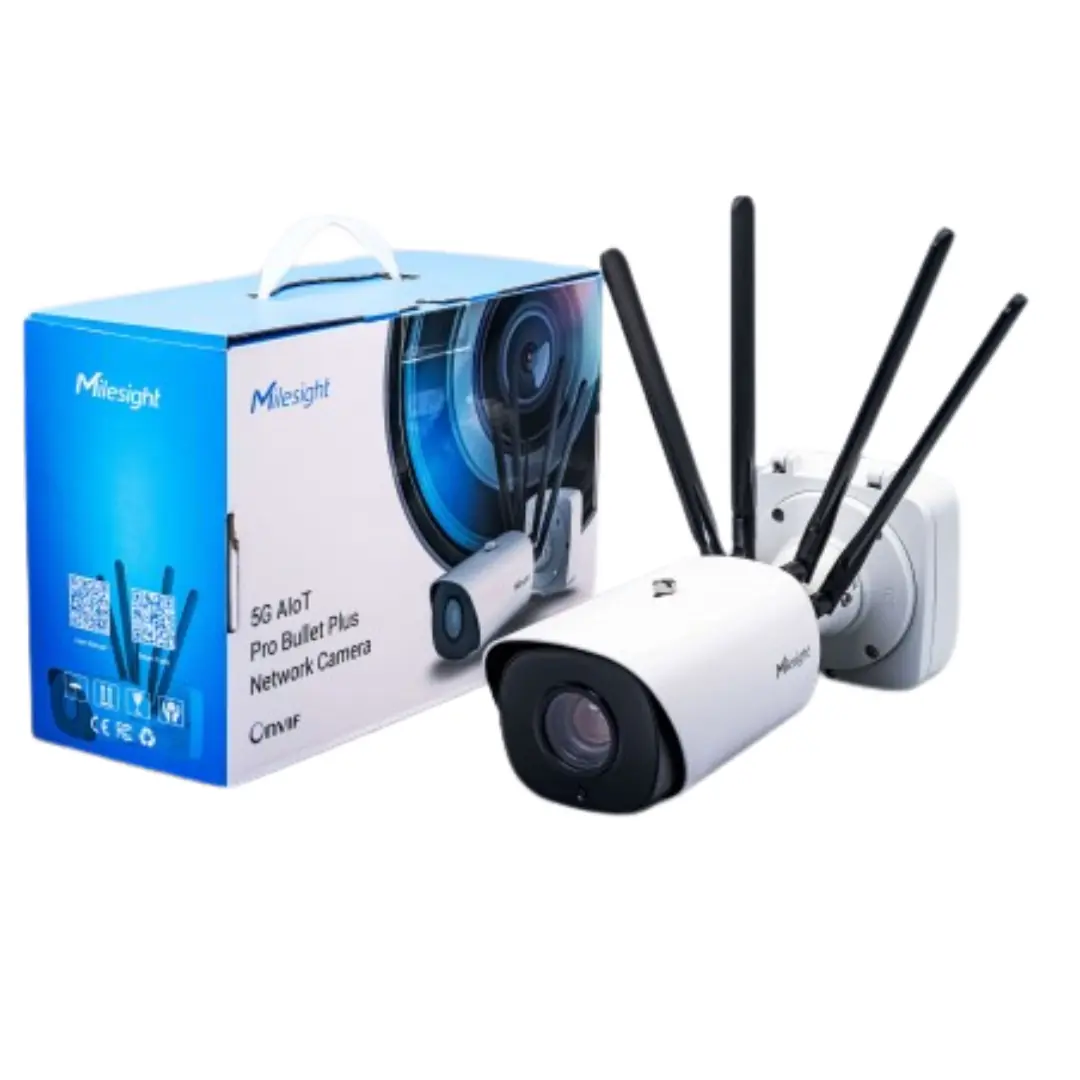

5G AI 4X/12X Pro Bullet Plus Network Camera

MS-C2966-X12R(T)GPE AI-Powered PTZ Network Camera – 1000-Word Overview

MS-C2966-X12R(T)GPE is a high-end, high-performance AI-powered PTZ network camera built for professional-grade security monitoring and surveillance. Featuring the latest technology and robust strength, the camera is well-suited for extensive security applications like critical infrastructure, city surveillance, industrial plants, airports, and transport hubs.

Equipped with capabilities such as 2MP Full HD resolution, 12x optical zoom, smart video analytics, and heavy weather-resistance housings, MS-C2966-X12R(T)GPE is designed to provide efficient and high-performance rendering in the harshest environmental conditions.

High-Definition 2MP Resolution for Crystal Clear Monitoring

Embedded in the MS-C2966-X12R(T)GPE is a 1/2.8" progressive scan CMOS sensor that can record video in 1920 x 1080 Full HD resolution. This guarantees high-quality image rendering, even in high-speed motion, which is ideal for environments where image precision is required—public streets, campuses, and perimeter zones.

Regardless of application in license plate recognition, facial recognition, or general surveillance, the high-definition output guarantees that each frame delivers usable information for real-time observation as well as stored evidence.

12x Optical Zoom with Extended Detail Capture

With its 12x high-resolution optical zoom lens, the MS-C2966-X12R(T)GPE can zoom in on faraway subjects without compromising image sharpness. This enables clear viewing of objects at a distance, which is essential for broad area surveillance uses such as ports, construction sites, parking lots, and train stations.

With its Pan-Tilt-Zoom (PTZ) feature, it is possible to control the field of view and zoom ratio of the camera remotely and follow subjects or survey regions of interest in detail.

AI-Driven Intelligent Video Analytics

One of the most notable features of the camera is its onboard AI video analytics engine. This allows the MS-C2966-X12R(T)GPE to analyze video streams intelligently in real-time, enhancing detection rates and eliminating false alarms. Major AI features include:

• Human and vehicle detection
• Line crossing detection
• Intrusion detection
• Face detection
• Auto-tracking
• People counting

These intelligent features make the camera ideal for smart cities, enterprise campuses, and transportation security, where automation and intelligence are crucial.

Effective Night Vision with Smart IR

Smart IR night vision in the MS-C2966-X12R(T)GPE extends the surveillance capabilities into no-light or low-light situations. Its infrared LEDs offer visibility at night, and the True Day/Night function provides correct color rendering during daylight and smooth transition at sunset.

This makes the camera particularly worth its while in 24/7 monitoring settings, including parking garages, warehouse yards, entry points, and logistics centers.

Durable Construction – IP66 Weather Resistant & IK10 Vandal Resistant

The MS-C2966-X12R(T)GPE is built to withstand harsh environments, with a durable IP66-rated housing to shield against rain, dust, and extreme temperatures. The vandal-resistant IK10-rated housing further guarantees that the camera will still function even in high-risk or tampered zones.

These ratings make it a good option for outdoor perimeter defense, city-wide surveillance, and transportation infrastructure, where durability and reliability are key.

360° Pan & Tilt with Smart Auto-Tracking

The PTZ mechanism is in advance, allowing 360° infinite horizontal pan and up to 90° vertical tilt for full-area observation with no dead spot. The smart auto-tracking feature targets moving objects—be it a vehicle or an individual—and maintains focus on them in the middle of the frame.

It is perfect for crowd monitoring, vehicle tracking, and real-time threat detection, facilitating quick and precise response by security personnel.

PoE+ for Easy Installation

Complementing Power over Ethernet Plus (PoE+), the MS-C2966-X12R(T)GPE streamlines the installation process by facilitating both power and data to be sent via a single cable. It's particularly useful in massive deployments where it's important to reduce the cost of infrastructure.

The camera is also ONVIF-compliant, which allows for smooth integration with various NVRs, VMS platforms, and third-party surveillance systems.

Ideal Applications

Due to its flexible architecture and smart operation, the MS-C2966-X12R(T)GPE is ideal for public transportation terminals – Bus stops, train stations, and airports

• Industrial buildings – Factory floors, oil & gas refineries
• City infrastructure – Traffic intersections, sidewalks, event areas
• Utilities & energy – Power plants, substations, water treatment facilities
• High-security campuses – Universities, financial centers, data centers
• Retail complexes – Shopping centers, street markets, loading docks

The MS-C2966-X12R(T)GPE PTZ Network Camera integrates AI-driven intelligence, high-definition video, and rugged environmental protection into a single, potent security solution. With intelligent tracking, accurate zoom, and rock-solid performance in all weather, it's the perfect choice for any organization looking to take its security posture to the next level.

Whether you’re deploying in a city surveillance grid, securing a logistics hub, or monitoring a utility plant, this camera offers exceptional coverage, accuracy, and peace of mind.

Specifications

Camera

Name 2MP 5G AI 12X Pro Bullet Plus Network Camera

Image Sensor 1/2.8″ Progressive Scan CMOS

Min. Illumination Color: 0.005Lux@F1.6

B/W: 0Lux with IR on

WDR 140dB Super WDR

(Super WDR Pro is optional for T Series)

Shutter Time 1/100000s~1s

Day/Night Mode, Day/Night/Auto/Customize/Schedule

IR Distance Up to 180m

S/N >55dB

Lens

Lens 5.3~64mm, 12X Optical Zoom

Field of View H61°~H5°/D69°~D5°/V36°~V2°

Mount Φ14

Focus Control Auto/Manual

Aperture F1.6~F2.8

Iris Control Auto

Video

Max. Image Resolution 1920x1080

Primary Stream 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)

50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)

Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)

50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)

Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)

50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)

Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG

Video Bit Rate 16Kbps~16Mbps(CBR/VBR Adjustable)

Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)

ROI Up to 8 areas

Image Settings Brightness/Contrast/Saturation/Sharpness

Web Access

Audio

Audio Compression G.711/AAC/G.722/G.726

Audio Sampling Rate 8/16/32/44.1/48KHz

Audio Bit Rate 16~256kbps

Two-way Audio Support

Interface

Ethernet 1*RJ45 10M/100M Ethernet Port

Audio I/O 1/1

Alarm I/O 1/1

Mobile Communication Parameter

Wireless Communication Support 5G/4G/3G

Frequency Bands 5G NR: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66 /n70/n71/n75/n76/n77/n78/n79

LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20 /B25/B26/B28/B29/B30/B32/B66/B71

LTE-TDD: B34/B38/B39/B40/B41/B42/B48

LAA: B46

WCDMA: B1/B2/B4/B5/B8/B19

Wireless Transmission Speed SA: DL 2.4Gbps; UL 900Mbps

NSA: DL 3.4Gbps; UL 550Mbps

LTE: DL 1.6Gbps; UL 200Mbps

SIM Card Nano SIM

Network

Network Storage NAS(Support NFS, SMB/CIFS

Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2

Intelligent Analytics

Video Analysis Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed

Face Detection: Detect and capture faces, get real-time snapshots.

The attributes include Age, Gender, Glasses, Mask, and Cap.

Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.

Object Counting& Report Count the number of objects crossing the line, optionally human and vehicle.

Support regional people counting for up to 4 detection areas

System

Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB

Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark

SIP/VoIP Support Yes, Voice & Video-over-IP

Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.

Event Action: FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc

System Compatibility ONVIF Profile G & M & S & T, API

General

Working Temperature -40℃~60℃

Working Humidity 0~90%(Non-condensing)

Power Supply PoE (802.3at) / DC 12V±10%

Power Consumption 8W MAX

16W MAX (With IR on)

Surge Protection 4KV

Weather Proof Up to IP67-rated for Weather-resistant Performance (Only for camera body)

Dimensions 320mmX134mmX126mm

320mmX134mmX292mm (With 5G Antennas)

Weight 1608g

Warranty 3/5 Years
