Saramonic UWMIC9S Overview

The Saramonic UWMIC9S KIT1 Camera-Mount Wireless Omni Lavalier Microphone System gives video content creators such as YouTube and TikTok stars, vloggers, corporate and wedding videographers, and mobile journalists an easy-to-use, high-quality-sounding wireless solution with a multitude of professional features built into an all-in-one and economical kit. It is the perfect system for recording dialogs, interviews, broadcasts, news, lectures, and speeches, letting you record one speaker speaking directly into your camera or recorder.

The UWMIC9S KIT1 has light, all-metal parts designed for the tough-and-tumble production environment. It comes with one bodypack transmitter and one high-end DK3A miniature omnidirectional lavalier mic with a range of foam and furry windscreens for indoor and outdoor applications. The bodypack has dedicated, 3.5mm mic and line inputs that can be used separately or together to send a line and a mic signal together.

The two-channel, camera-mount receiver has two 3.5mm audio outputs. It includes a selection of cables to connect to DSLR/mirrorless cameras, professional camcorders, recorders, mixers, and audio interfaces with 3.5mm or XLR microphone inputs. The receiver has an external mic/line input (with plug-in power), enabling you to mix a wired mic, mixer, or even a second wireless system into the camera easily. If your camera lacks a headphone jack, you can listen to your sound through the 3.5mm headphone output of the receiver while recording to make sure you are getting a clean signal.

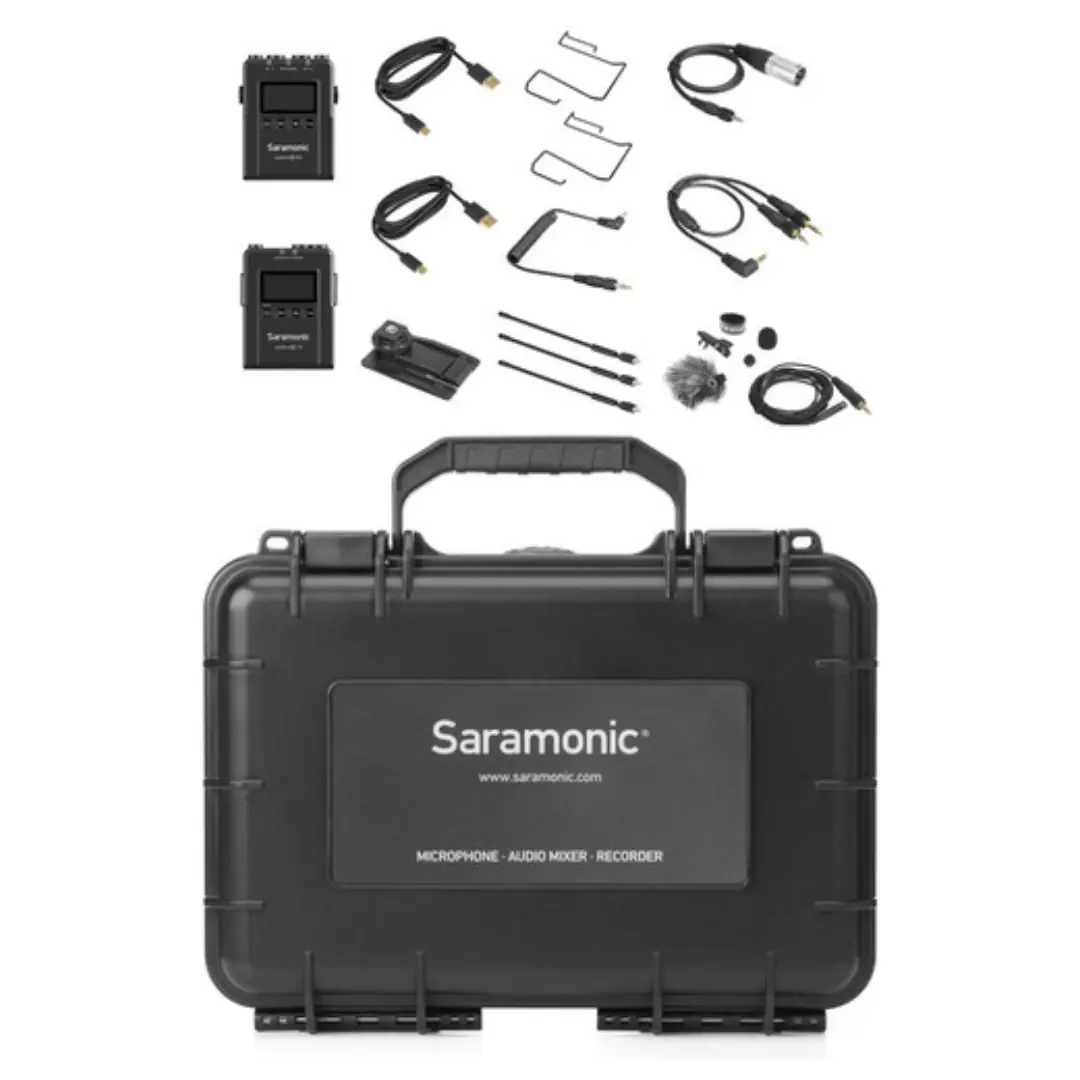

A hard case that is watertight and impact-resistant is included to store your system nicely and keep it safe when it is not being used or shipped.

Simplified design for both novice and professional videographers, the UWMIC9S KIT1 is simple to use with little setup, so you can start shooting straight out of the box. The frequency scan feature automatically scans two banks of 96 frequencies to locate the cleanest frequency at your location for stable transmission up to 330'. The receiver and transmitter sync rapidly through IR with the touch of a button. Bright, readable OLED screens on the receiver and transmitter allow you to make rapid changes to the easy-to-use menus—in the brightest or darkest conditions.

Both the transmitter and receiver have rechargeable 2000mAh lithium-ion batteries that last up to 10 and 8 hours respectively. The batteries are recharged via the USB Type-C power ports, which will also charge the components even while they are in use during long shoots.

The system can be expanded by adding more transmitters and receivers to enable up to 16 wireless microphones in use on set at a single time.

Universal and Light TX9S Transmitter Compatible with Any Audio Source

The TX9S transmitter has dedicated locking 3.5mm mic and line-level inputs, so you can transmit microphones and/or line-level signals simultaneously wirelessly (both signals are summed).

The 9-step input gain control enables you to customize your levels.

Plug the mic-level input into the supplied DK3A lavalier, mini-shotgun microphone, headset microphone, or any 3.5mm TRS mic.

Connect the line-level input to mixers, music players, or any line-level device output you wish to send wirelessly to the receiver.

Locking 3.5mm input connectors prevents your lav or line-level device from falling off at the wrong time.

The transmitter includes a selectable High/Med/Low transmission power output setting so users can save batteries and manage wireless intermodulation that arises when multiple transmitters are in close proximity to each other.

The On/Off switch can be utilized to silence the transmitter.

The rechargeable battery built-in gives up to 10 hours of use. Charge and power the unit, even during use, using the USB Type-C port.

Premium DK3S Omnidirectional Lavalier Mic

The DK3A omnidirectional lavalier microphone is made to significantly improve the sound quality of your productions with their superior sonic performance.

With a low-profile, 4mm design, the lavalier has a professional appearance and can be discretely hidden from view on the camera.

Speech is optimized to provide a clear, natural sound with excellent vocal intelligibility.

The omnidirectional pickup is designed to ensure consistent audio level delivery even when subject turns away from the microphone.

Lavalier accessories consist of two alligator-style mic clips, a metal mesh windscreen, two fitted foam windscreens, two furry high-wind windscreens, and a cable wrap.

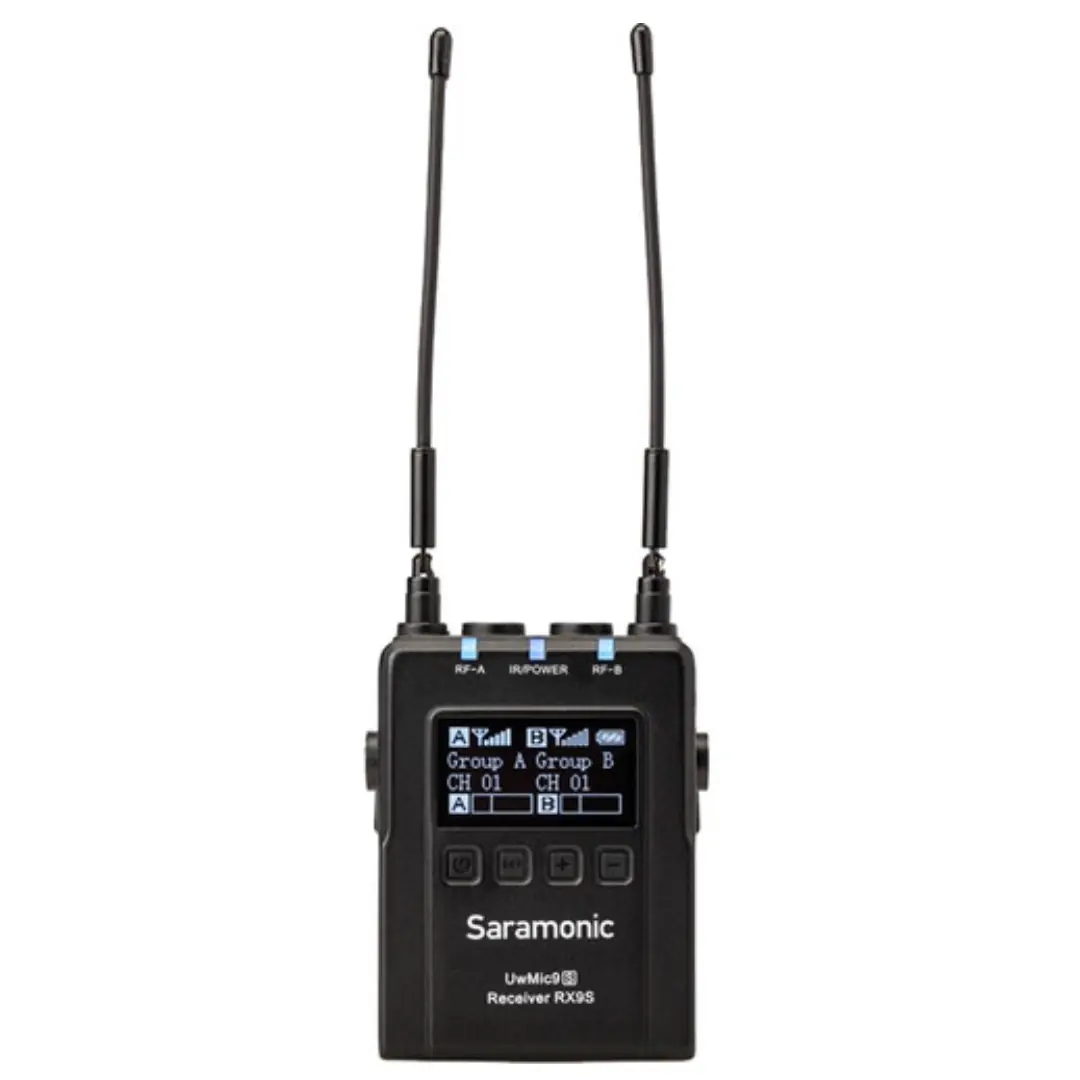

Versatile RX9S Dual Receiver with Enhanced Connectivity and Features

The 3.5mm mic/line input with plug-in power and 16-step level control allows you to connect and blend in a wired external audio source, mixer, or microphone.

The 3.5mm headphone output allows you to monitor in real time.

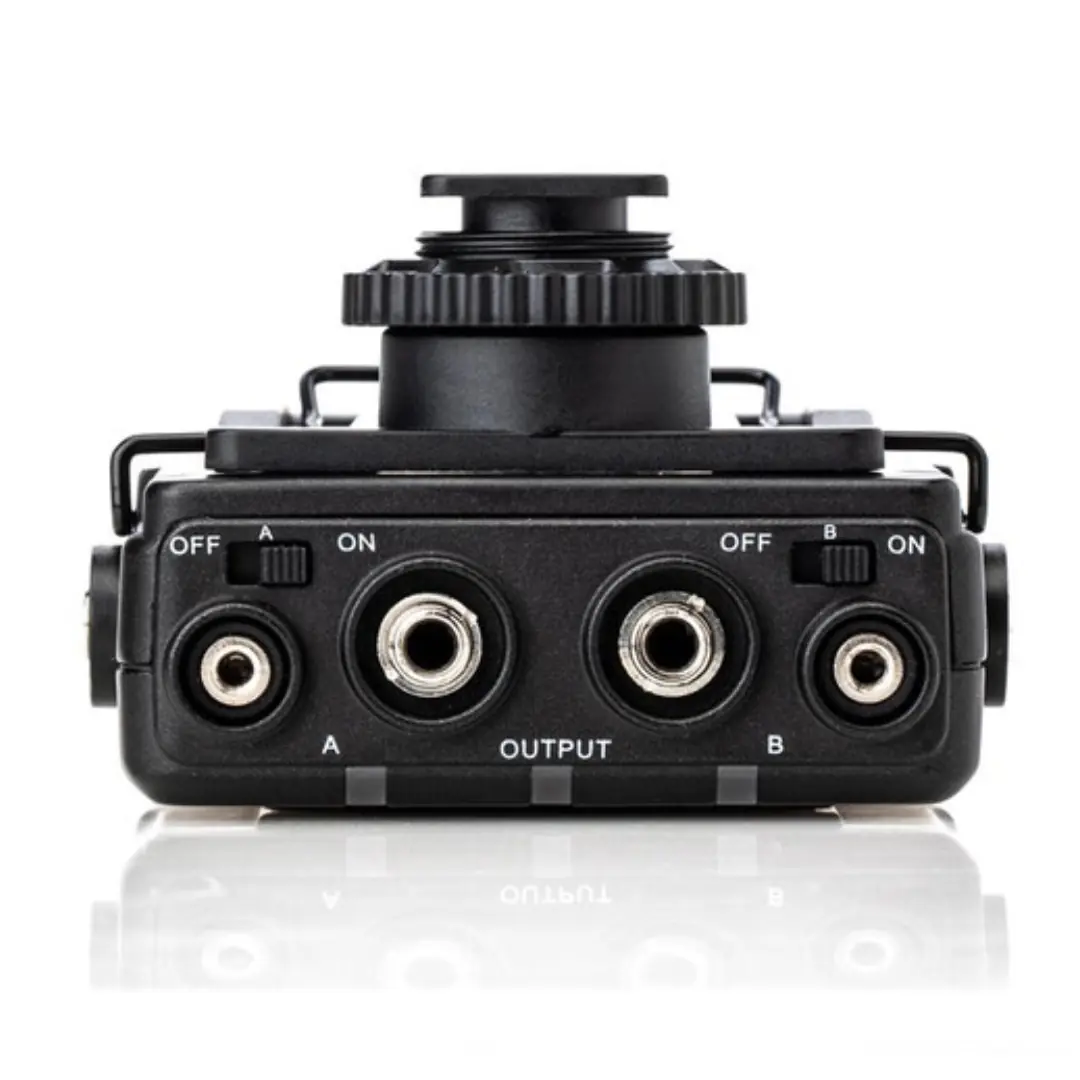

The receiver also has two locking 3.5mm outputs. Cables are supplied with a right-angle, locking 3.5mm TRS male to two 3.5mm TRS male Y-cable, a single locking 3.5mm TRS to 3.5mm TRS coiled cable, and two locking 3.5mm TRS to XLR male cables.

A user-selectable 150 Hz low-cut filter removes unwanted low-frequency rumble and noise.

The two removable whip antennas provide 360° adjustment to assist with optimizing wireless reception.

Physical group A & B power switches enable users to conveniently save power when utilizing a single transmitter.

The rechargeable battery offers up to 8-hour runtime. The USB Type-C power port enables you to charge and power the unit, even during operation.

If you must add another microphone to your system, the two-channel receiver enables you to conserve space on your rig by utilizing one receiver to feed in signals from two mic/transmitters simultaneously.

A selectable Mono/Stereo output allows you to decide how the audio is recorded. In mono, the two mics are combined and recorded as the same mono signal on both the left and right channels of your camera. In stereo, each mic is maintained individually and recorded discretely to the left and right channels of your camera.
