Saramonic ULTRA01 Overview

Channel Wireless Mic System with Timecode

Enhance your wireless audio equipment for more content creation, journalism, and filmmaking use with the Saramonic Ultra, a modern dual-channel digital wireless audio system. With two clip-on transmitters/recorders with onboard omni mics and a single plug-in receiver with remarkable range, Ultra is designed for today's workflows.

32-bit float recording on the transmitters, along with auto gain, ClearVoice AGC Noise Cancelation, and a high max SPL of 130 dB, allow you to achieve crystal-clear, professional-sounding audio capture with little effort. AMOLED touchscreens make it easy to use the transmitter in any lighting environment. With the charging case included, you can charge the entire system at once to achieve up to 18 hours of use. Perfect for use with intelligent devices, the receiver utilizes adapters to link to iOS/Android devices or computers, and all can be managed through the Saramonic app. With an IPX5 rating, the system is protected from light water splashes and perspiration, adding its reliability and versatility. The Saramonic Ultra wireless setup comes with a USB-C output adapter, Lightning output adapter, coiled 3.5mm TRS output cable (for external recording devices), an external antenna, two magnetic transmitter mounts, two furry windscreens, a USB-C cable, and a storage pouch with a drawstring.

Discreet Transmitters, Auto Gain, and Noise Canceling

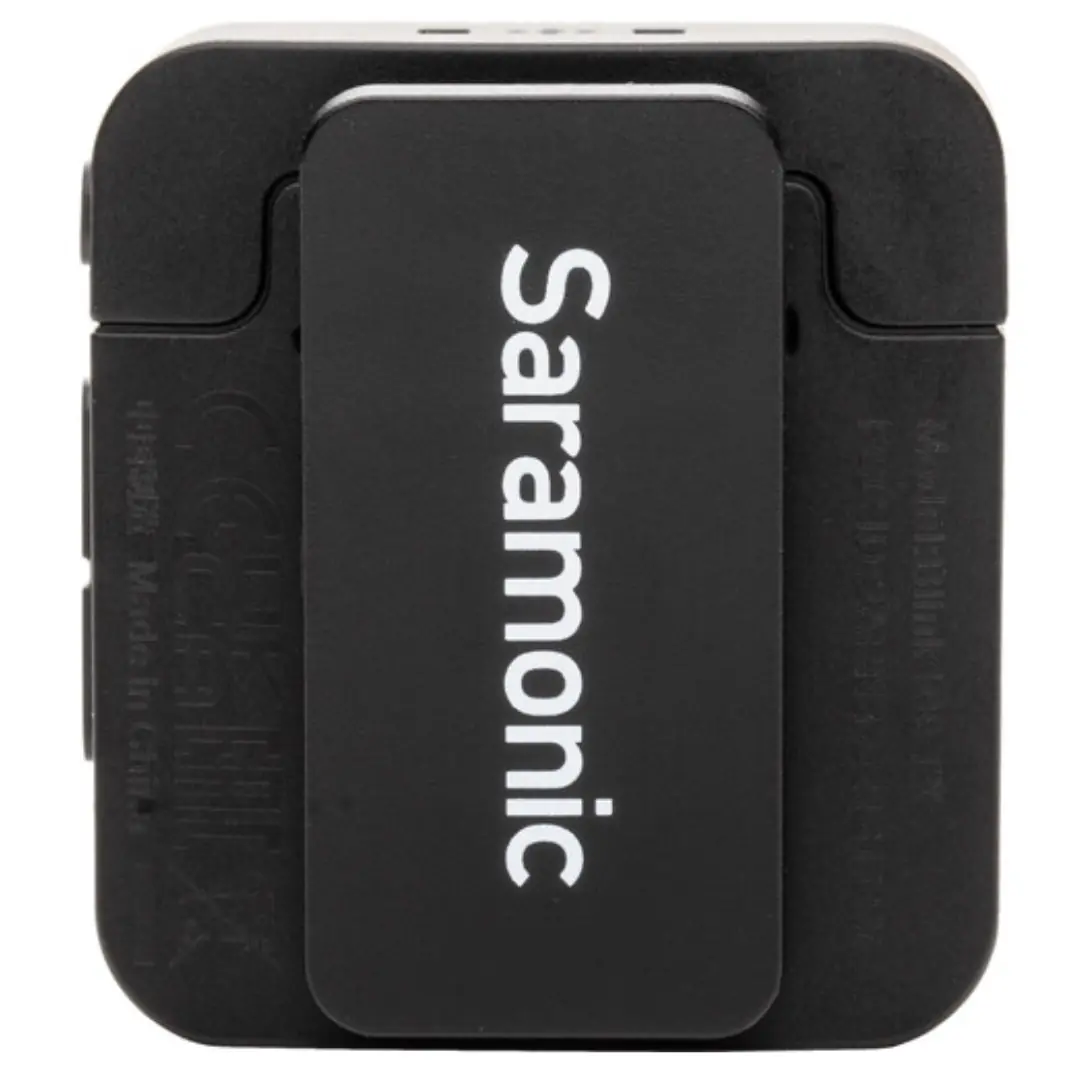

Ultra transmitters clip firmly or magnetically onto clothing and provide integrated omni mics that can take up to 130 dB SPL. Remote control provides 30-step input-level adjustment, with auto gain providing a consistent sound. Transmitter controls include soft-touch buttons for muting, recording, and engaging ClearVoice AGC Noise Cancelation to minimize background noise.

32-Bit Float Recording with Advanced Timecode Sync

32-bit float recording for removal of clipping or distortion at recording level

8GB of internal recording memory

Timecode built-in for easy audio/video sync in post

Easy drag-and-drop file transfer to computer

Universal Compatibility

Ultra's tiny dual-channel receiver captures two subjects at once on almost any device. There is a 3.5mm output for cameras, mixers, and more, and USB-C and Lightning adapters plug into iPhones, Androids, Macs, PCs, tablets, and more.

In addition 2,900, it even allows playback on smartphones and tablets without having to remove the receiver. The camera shoe mount built in makes camera utilization effortless.

Effortless Control and Advanced Sonic Features

The AMOLED touchscreen and control dial enable effortless adjustments for mic gain, noise cancellation, and onboard recording modes of transmitters. It supports Mono, Stereo, or Safety output modes, a low-cut filter to eliminate unwanted low frequencies, and Vocal Boost to ensure clear voice quality, making your dialogue audible over the mix.

Increased Range, Security, and Battery Life

External antenna with up to 984' line-of-sight range, even in interference-dense environments

128-bit encryptions keep your signal clear, safe, and secure

2900mAh charging case for up to 18 hours of use

Charging case automatically powers system on/off when taken out or inserted

Transmitters and receivers can be charged through USB while in use

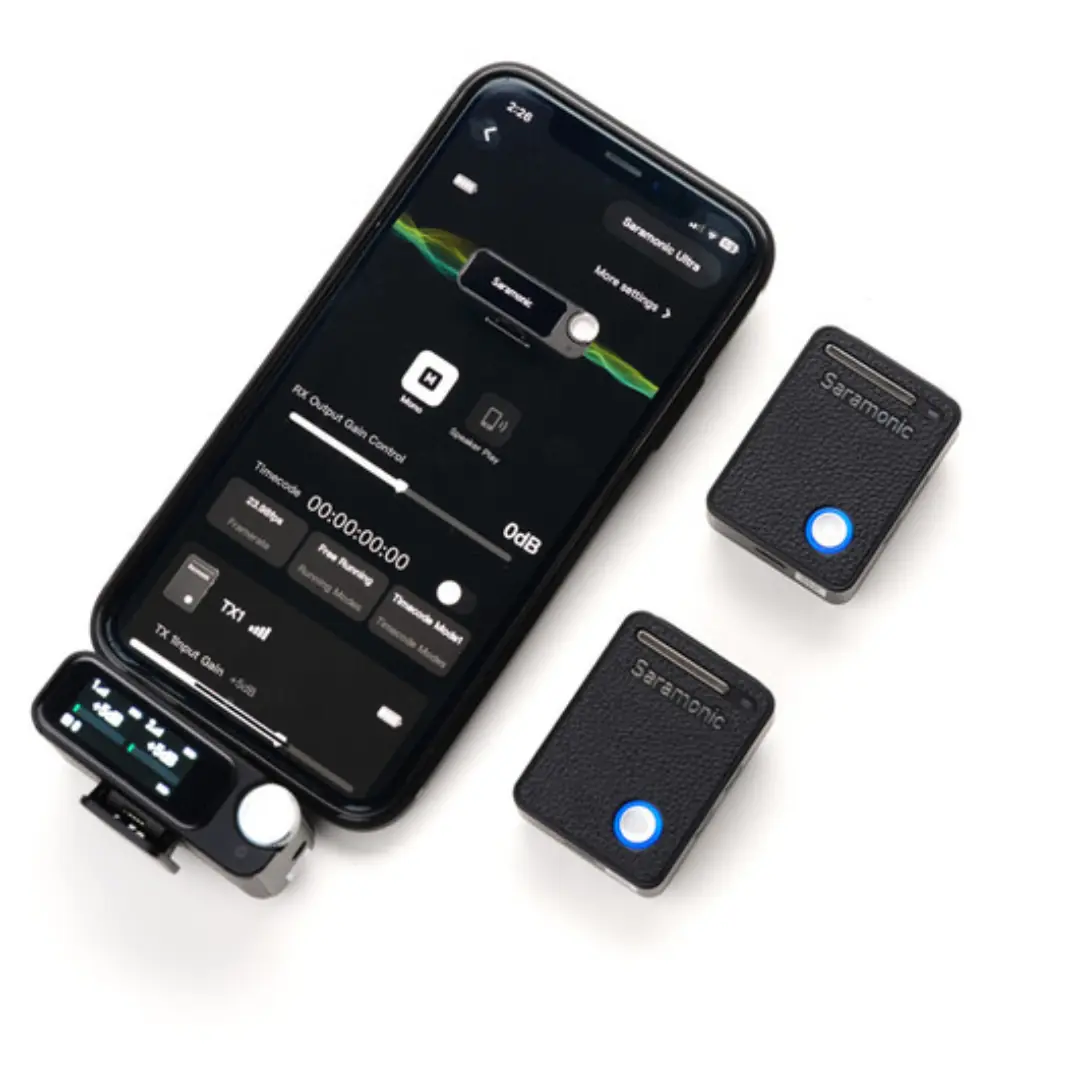

Advanced Control Made Easy with Saramonic App

Tune transmitter settings: adjust gain, set recording modes, choose among three noise cancellation modes, activate auto gain, engage low-cut filters or vocal enhancement, and adjust mute. Adjust receiver output levels, display settings, and output modes, activate mobile device speakers, and adjust timecode settings. The app also provides easy monitoring of battery life and firmware updates—all from the comfort of your smartphone or tablet.

KEY SPECS:

 Transmitter

Dimensions:       45.5 × 33.5 × 15 mm

Weight:               35 g

Sample Rate / Bit Depth: 48 kHz / 24-bit, 48 kHz / 32-bit float (with onboard recording enabled)

Signal-to-Noise Ratio: >90 dB

SPL: 130 dB

Output Mode: Mono / Stereo / Safety Track / Headset / Headphone

One-click Noise Cancellation: Yes

Noise Cancellation Mode: Adjustable in three levels via the app

Frequency Response: 20 Hz - 20 kHz

Latency: 25 ms

Low Cut: 150 Hz

Transmission Range: 300 m (with external antenna), 250 m (without external antenna)

Timecode: Supported

Onboard Recording: 8 GB

Built-in Mic: Silicon Mic

Battery Life: 6 hours

Clip: Metal / Non-removable / Non-rotatable

Display: No

Supports Mic in: Yes

Windproof Capsule: No

Water Resistance: IPX5-rated

Power Supply: Built-in Lithium-Ion Battery

 Receiver

Display:        AMOLED

Real-time Monitoring:   Yes

Playback without Unplugging Receiver:   Yes

Gain Control: Yes

Charging while Recording: Yes

Supports Dual Device Output: Yes

Adapter Design: Replaceable / Plug and Play / No Latch

3.5 mm: Female Connector

USB-C: Yes

Lightning: Yes

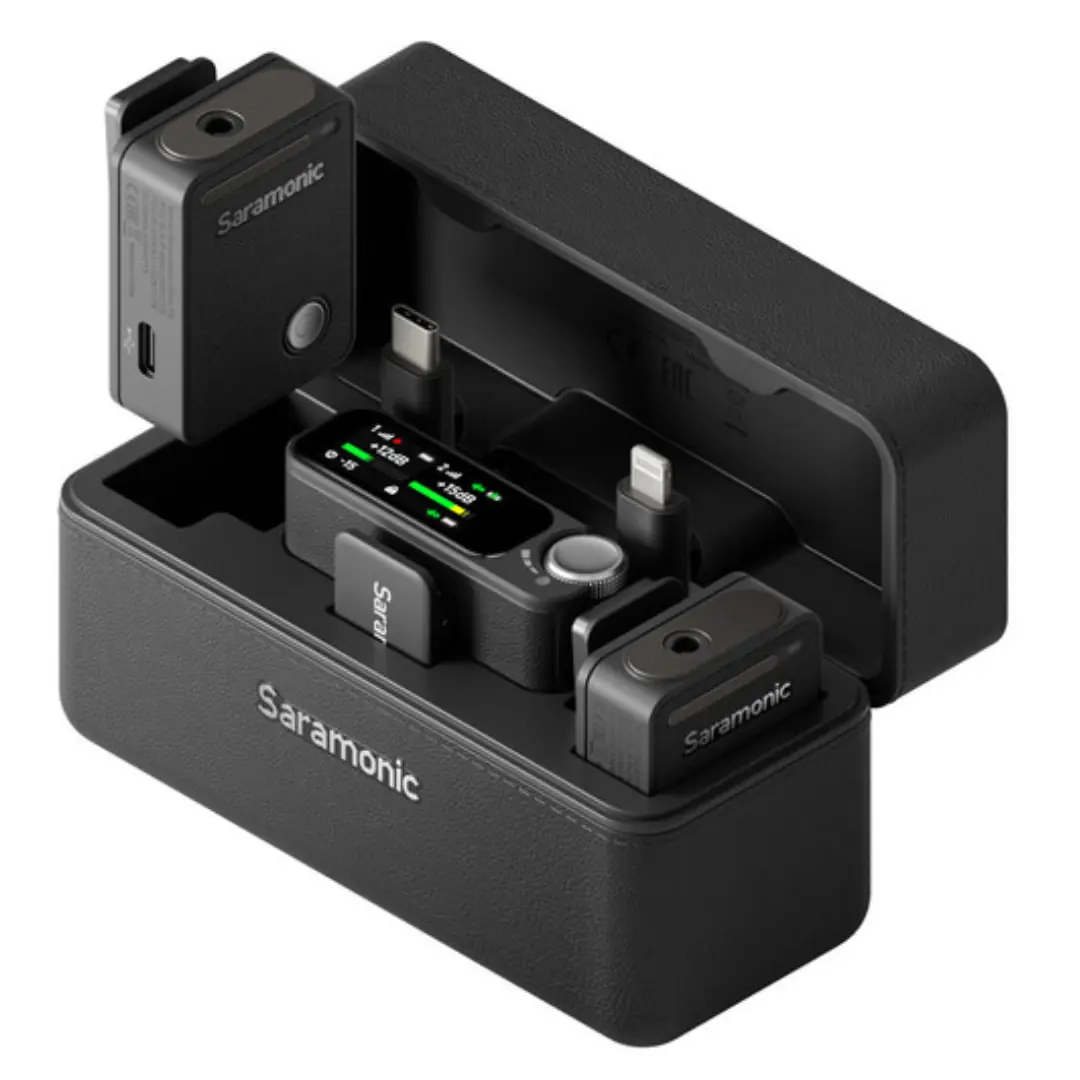

 Charging Case

Dimensions:  117 × 48.5 × 62.4 mm

Weight :       210.5 g

Charging Cycles: (2 × TX + 1 × RX)**: > 1 Cycle

Operating Time: (2 × TX + 1 × RX)**: 24 hours

Battery Capacity: 2900 mAh

Other Features

Universal Compatibility: Compatible with cameras, smartphones (USB-C, Lightning), computers, and some action cameras (DJI Action 4, DJI Osmo Pocket 3)

Advanced Control:  The Saramonic app allows for adjusting transmitter settings such as gain, recording modes, noise cancellation levels, auto gain, low-cut filters, vocal enhancement, and mute. It also enables control of the receiver's output levels, display settings, output modes, mobile device speakers, and timecode settings

External Antenna:  Enhances signal strength and stability, extending the range up to 300 meters

Security:  128-bit encryption keeps the signal clear, safe, and secure
