Libec QD-30 Tripod System Overview

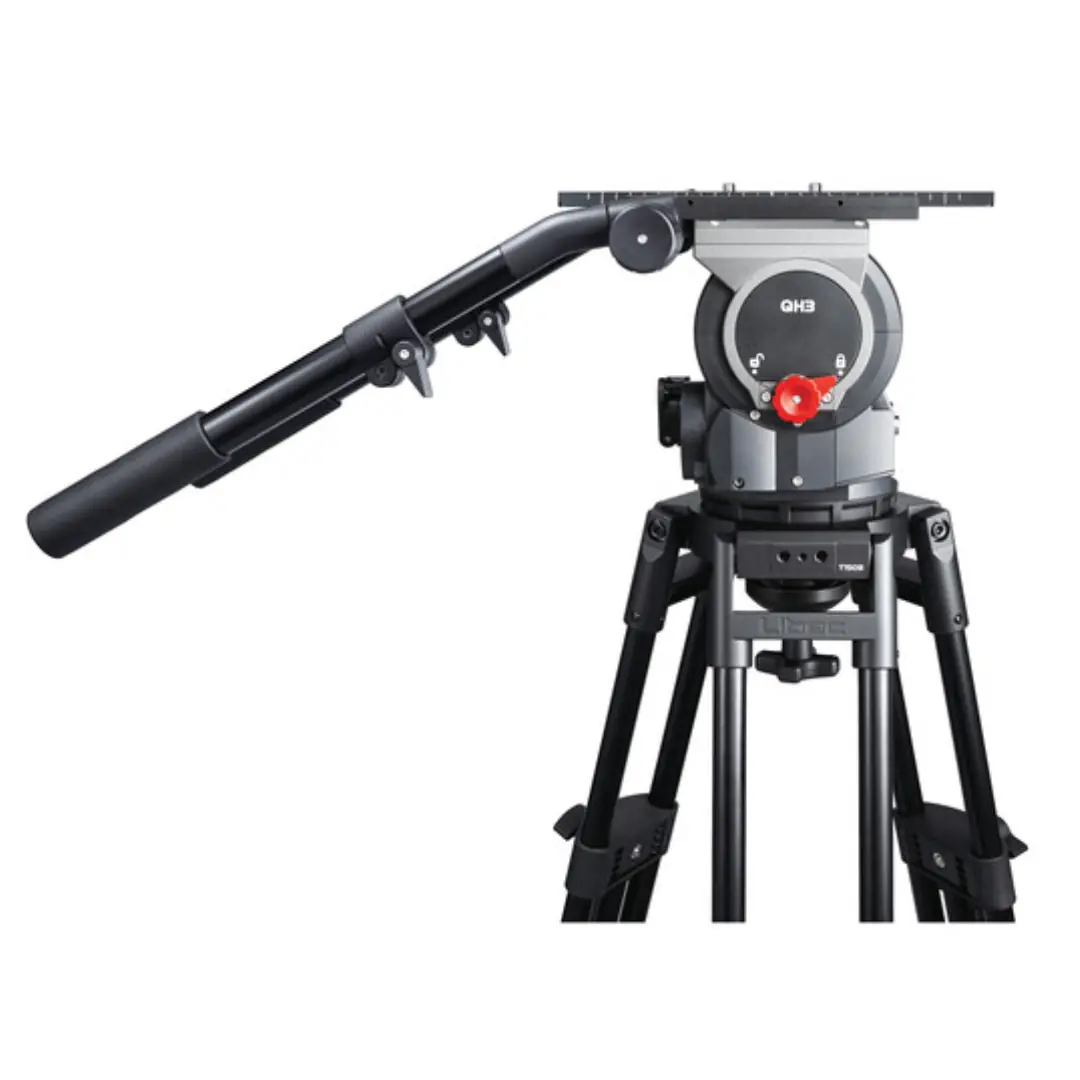

The Libec QD-30M Tripod System features the pedestal-capable QH3 4-bolt flat base fluid head and the T150B 2-stage aluminum tripod. The system is complete with a telescoping mid-level spreader and large rubber foot pads. The QH3 head attaches to the tripod via an included 150mm half-ball adapter and supports up to 152 lb. It has a side-mount camera plate system and comes with two telescoping pan bars. For attaching accessories, the T150B tripod offers a total of six 1/4"-20 and 3/8"-16 mounting threads around the bowl base.

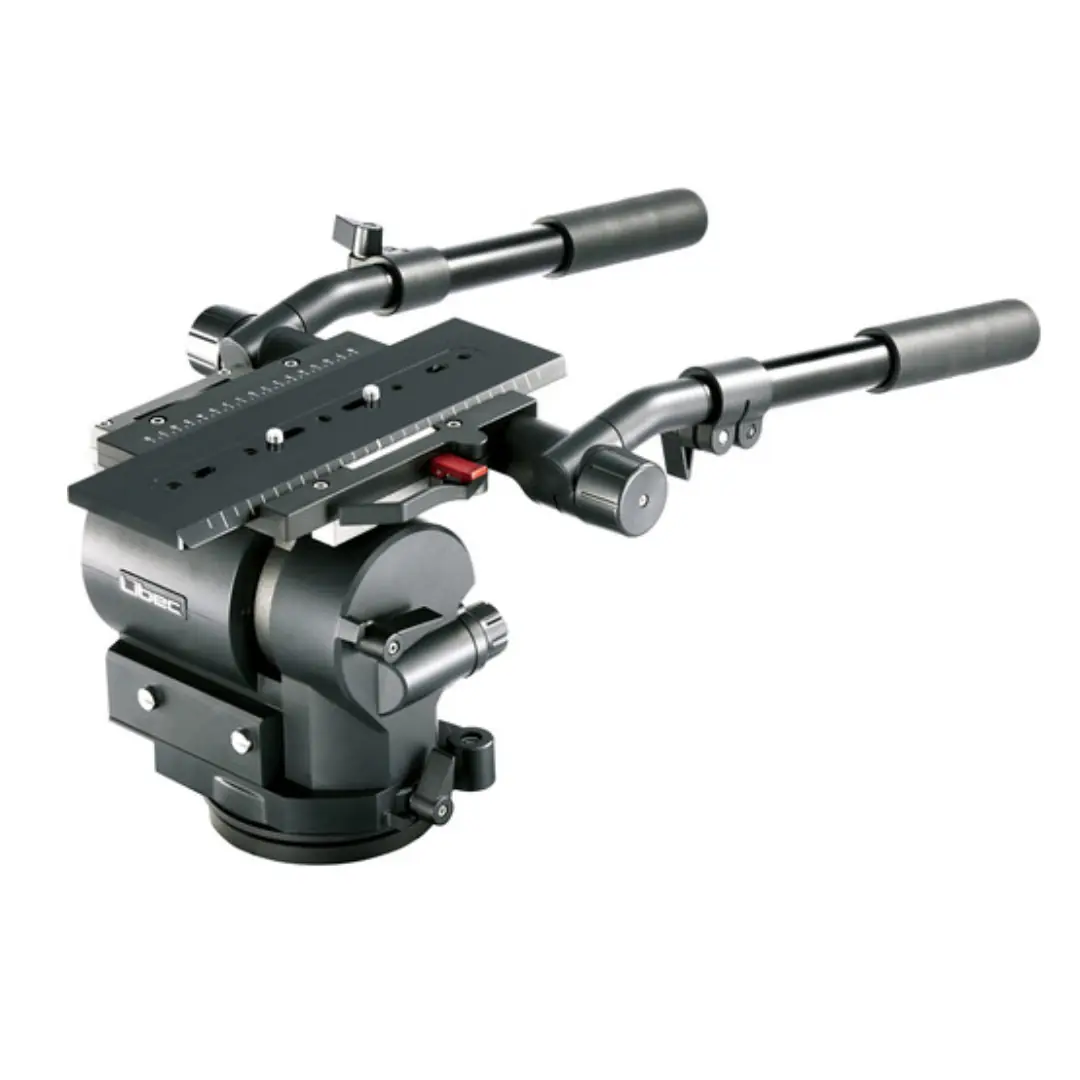

Libec QH3 Fluid Head

The Libec QH3 Fluid Head is a pedestal-capable heavy-duty head supporting up to 152 lb. It features a 4-bolt flat base and comes with a 150mm half-ball adapter that secures via four included screws. The QH3 has a side-mount camera plate system and includes a sliding plate with dual 3/8"-16 threaded mounting screws.

The fluid head is well suited for supporting small- and medium-sized box lens setups, and it comes with two 2-piece telescoping pan bars that allow for easier integration of optional zoom controllers. Other features include continuous counterbalance, 7-step drag, independent pan and tilt locks, and an illuminated bubble level.

Key Features

• Pedestal-capable heavy-duty fluid head with 152 lb payload
• Flat base with four screw holes for securing an included 150mm half ball adapter or mounting on a pedestal
• Side-mount camera plate system
• 3" sliding camera plate with dual 3/8"-16 threaded mounting screws
• Two 2-piece telescoping pan bars
• Continuous counterbalance
• 7-step drag
• Independent pan and tilt locks
• 90 to -70° tilt
• Illuminated bubble level
• Aluminum construction
• Made in Japan

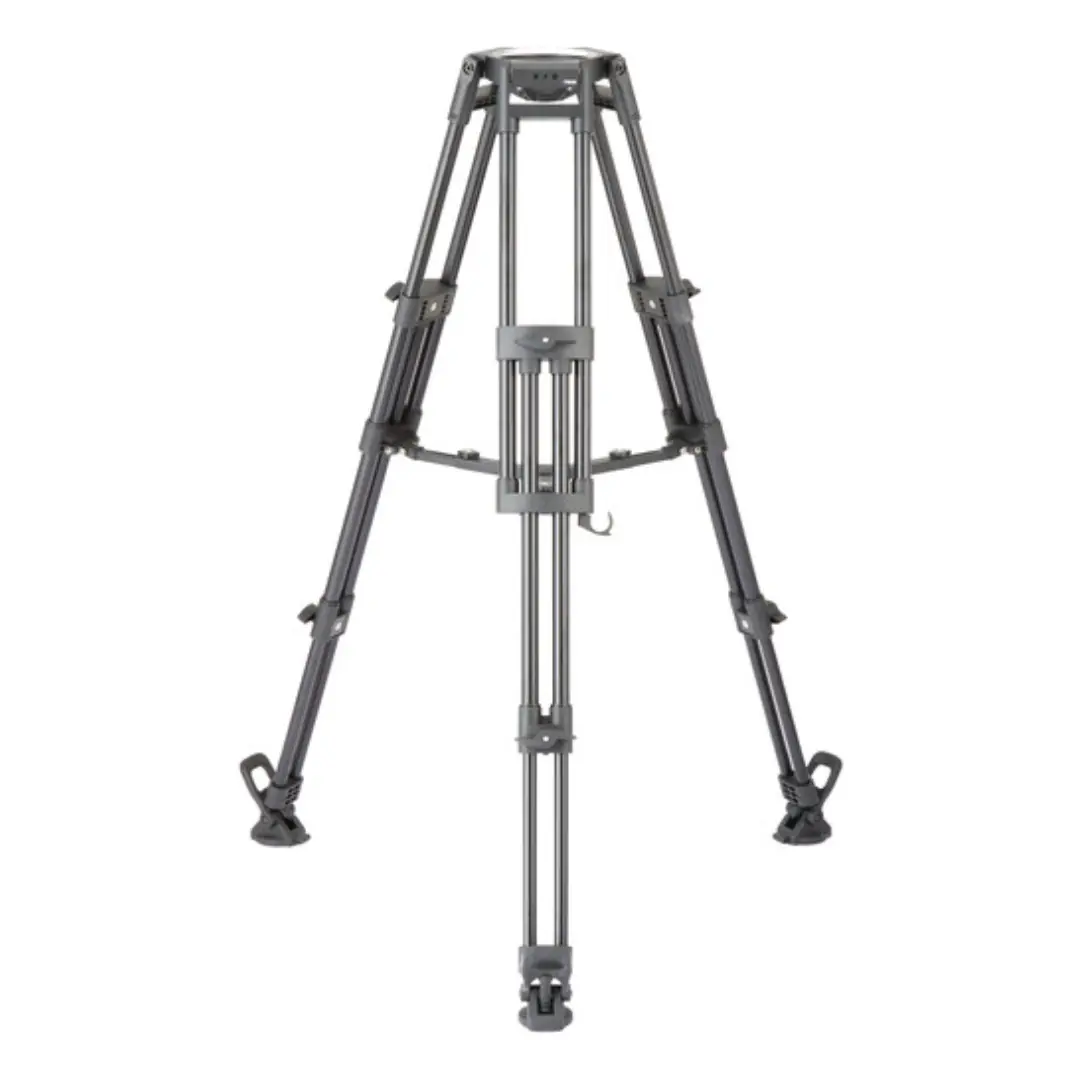

Libec T150B Heavy-Duty 2-Stage Aluminum Tripod Legs with 150mm Bowl

The Libec T150B is a heavy-duty set of aluminum tripod legs with a 150mm bowl. It supports up to 220.5 lb and offers a height range of 23 to 64" in two legs stages. Each leg has a twist leg lock knob at each stage. The legs feature spiked feet and come with a plastic cover over them. If you incorporate an optional ground spreader, the legs can be installed into the spreader with these plastic covers on. Compatible spreaders include the SP-15B ground spreader and BR-6B mid-level spreader. Optional rubber foot pads are also supported, such as the FP-6B pads.

Several 3/8"-16 and 1/4"-20 accessory mount threads are included on two sides of the tripod, toward the top by the bowl base. There is also a weight hook included on one of the legs. The T150B is Japanese made. Compatible tripod heads are the Libec QH1 and QH3.

Key Features

• 150mm bowl
• 220.5 lb payload
• 23 to 64" height range in two leg stages
• Ergonomic twist leg lock knob at each stage of each leg
• Spiked feet
• One 1/4"-20 and two 3/8"-16 accessory mount threads on two sides of the tripod, for a total of six mounting points
• Weight hook
• Optional foot pads and mid and ground spreaders supported
• Made in Japan



Libec BR-6B Mid-Level Spreader

Set up your tripod and add stability with the BR-6B Mid-Level Spreader from Libec. Compatible with the RT40RB, RT50B, RT50C, T102B, and T103B tripods, this telescopic model can extend from 7" to 10.3" to accommodate a wide range of leg angles.

Libec Large Rubber Foot Pads for Select Tripods

The replacement Large Rubber Foot Pads for Select Tripods from Libec are compatible with their T102B, T103B, T150B, and T150C tripods. The rubber pads attach to the bottom of each leg and prevent the tripod from sliding on smooth surfaces.

Compatibility

Libec: T102B, T103B, T150B, & T150C Tripods
