Libec QD-10 Tripod System Overview

The Libec QD-10 Tripod System features the pedestal-capable QH1 4-bolt flat base fluid head and the T150B 2-stage aluminum tripod. The system is complete with the SP-15B Ground Spreader, which has individually adjustable arms. The QH1 head attaches to the tripod via an included 150mm half-ball adapter and supports up to 88 lb. It has a side-mount camera plate system and comes with two telescoping pan bars. For attaching accessories, the T150B tripod offers a total of six 1/4"-20 and 3/8"-16 mounting threads around the bowl base.

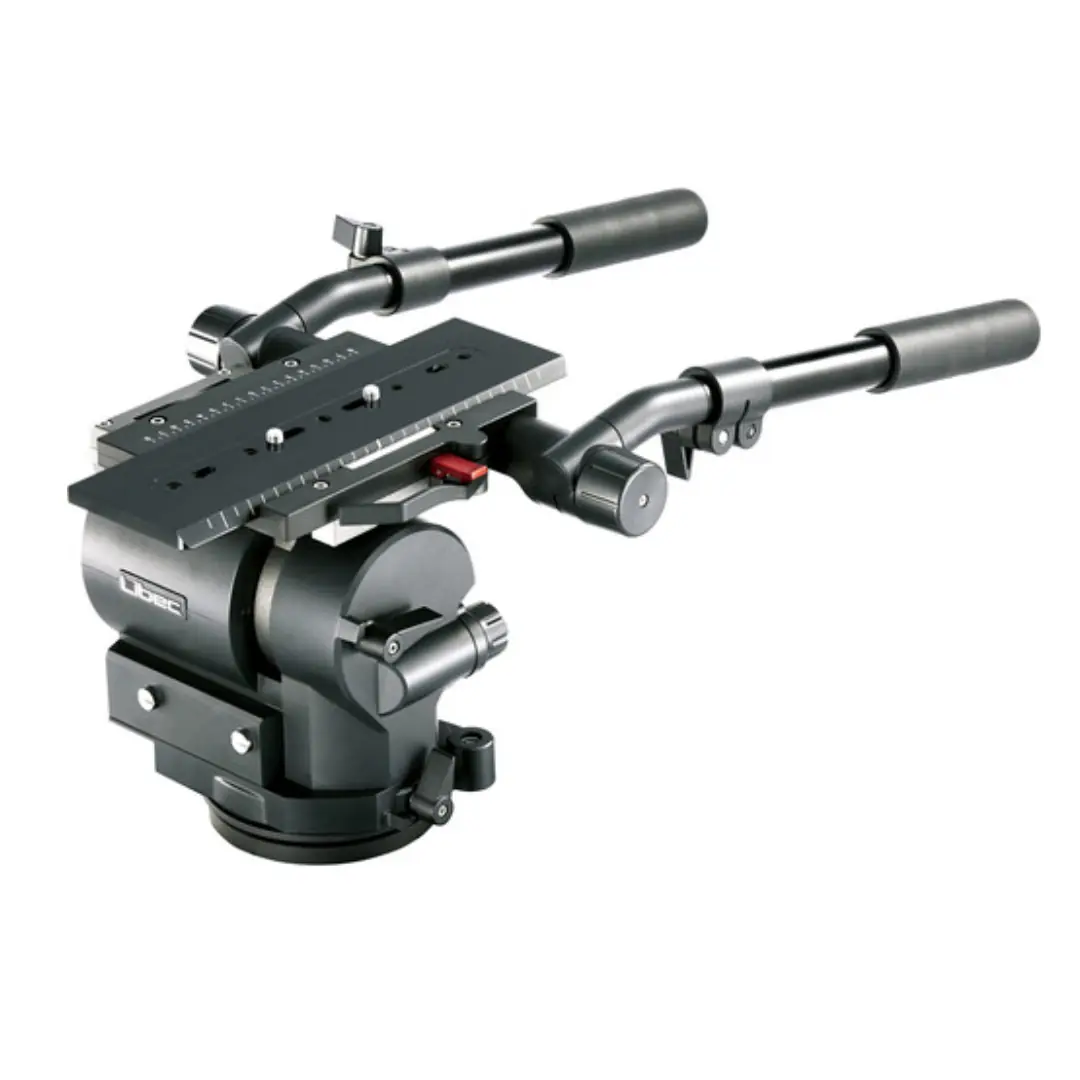

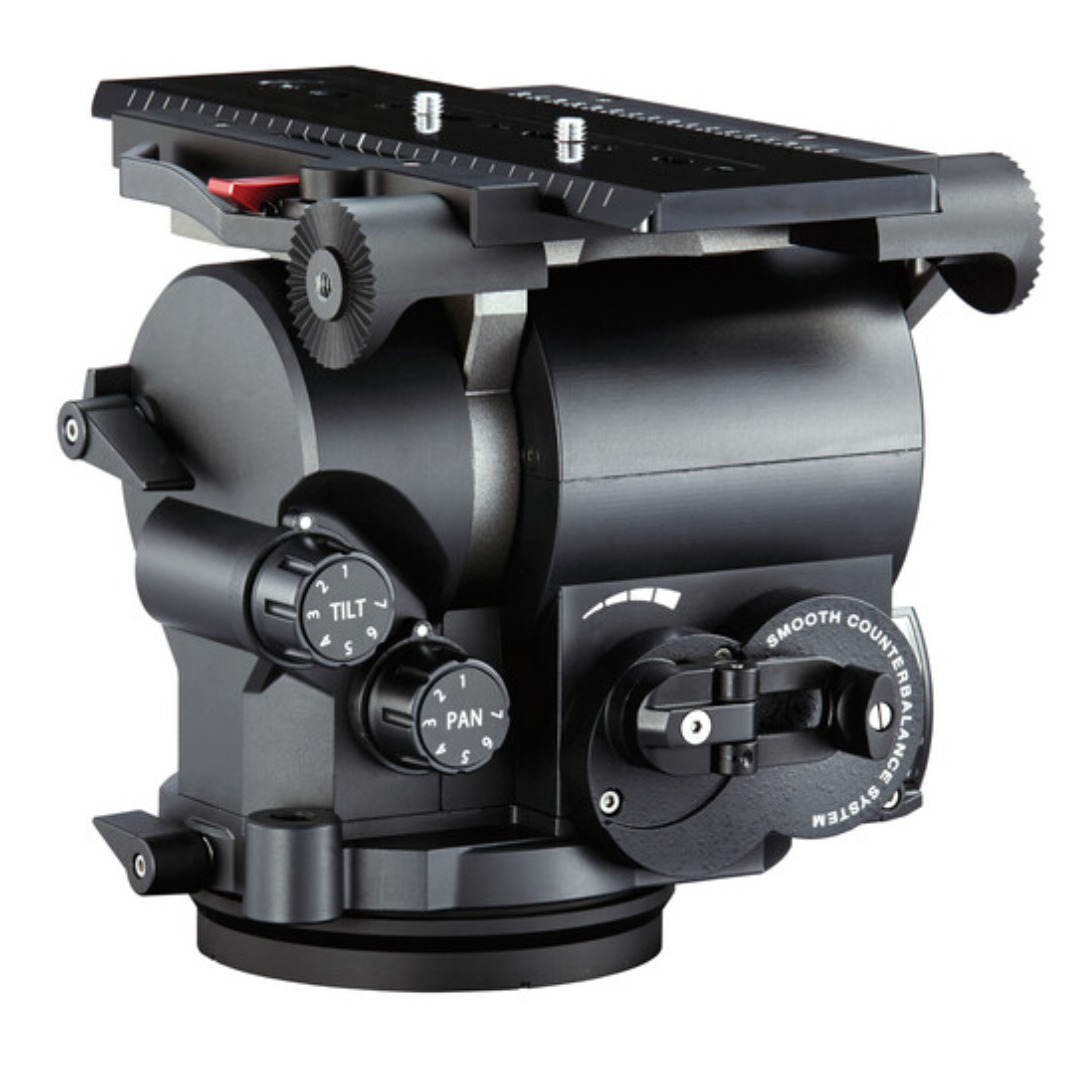

Libec QH1 Fluid Head

The Libec QH1 Fluid Head is a pedestal-capable heavy-duty head supporting up to 88 lb. It features a 4-bolt flat base and comes with a 150mm half ball adapter that secures via four included screws. The QH1 has a side-mount camera plate system and includes a sliding plate with dual 3/8"-16 threaded mounting screws.

The fluid head is well suited for use with teleprompter setups, including those with talent monitors, as well as for supporting cameras with small box lenses, and it comes with two 2-piece telescoping pan bars that allow for easier integration of optional zoom controllers. Other features include continuous counterbalance, 7-step drag, independent pan and tilt locks, and an illuminated bubble level.

Key Features

Pedestal-capable heavy-duty fluid head with 88 lb payload

Flat base with four screw holes for securing an included 150mm half ball adapter or mounting on a pedestal

Side-mount camera plate system

3" sliding camera plate with dual 3/8"-16 threaded mounting screws

Two 2-piece telescoping pan bars

Continuous counterbalance

7-step drag

Independent pan and tilt locks

90 to -70° tilt

Illuminated bubble level

Aluminum construction

Made in Japan

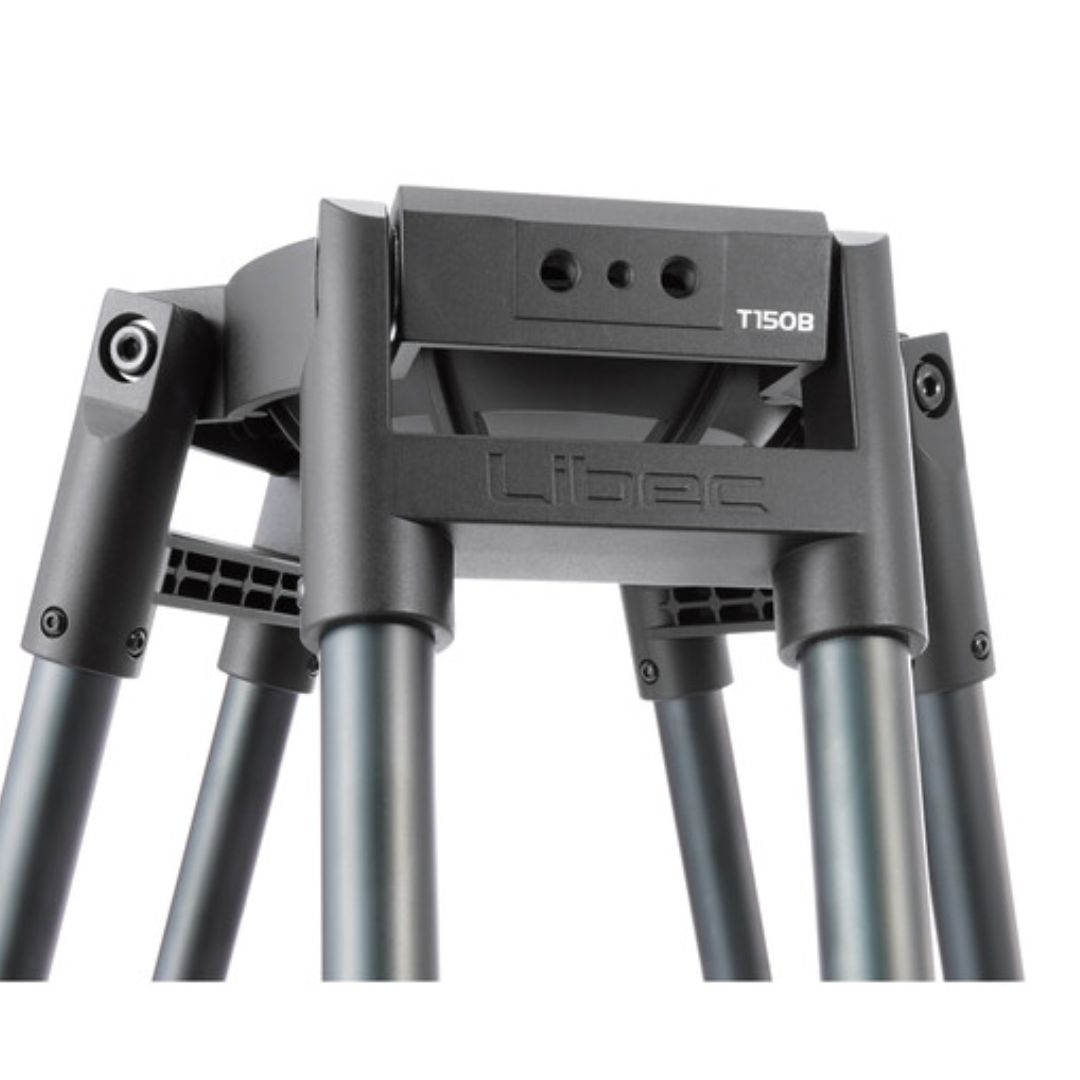

Libec T150B Heavy-Duty 2-Stage Aluminum Tripod Legs with 150mm Bowl

The Libec T150B is a heavy-duty set of aluminum tripod legs with a 150mm bowl. It supports up to 220.5 lb and offers a height range of 23 to 64" in two legs stages. Each leg has a twist leg lock knob at each stage. The legs feature spiked feet and come with a plastic cover over them. If you incorporate an optional ground spreader, the legs can be installed into the spreader with these plastic covers on. Compatible spreaders include the SP-15B ground spreader and BR-6B mid-level spreader. Optional rubber foot pads are also supported, such as the FP-6B pads.

Multiple 3/8"-16 and 1/4"-20 accessory mount threads are provided on two sides of the tripod, on top near the bowl base. A weight hook is also provided on one of the legs. The T150B is made in Japan. Compatible tripod heads include the Libec QH1 and QH3.

Key Features

150mm bowl

220.5 lb payload

23 to 64" height range in two leg stages

Ergonomic twist leg lock knob at each stage of each leg

Spiked feet

One 1/4"-20 and two 3/8"-16 accessory mount threads on two sides of the tripod, for a total of six mounting points

Weight hook

Optional foot pads and mid and ground spreaders supported

Made in Japan

Libec SP-15B Ground Spreader for T150B & T150C Tripods

The Libec SP-15B Ground Spreader is compatible with the Libec T150B and T150C tripods. The arms are individually length-adjustable when you loosen dedicated knobs, and a pull ring is provided in the center for collapsing the spreader.
