Libec ALX Camera Slider Overview

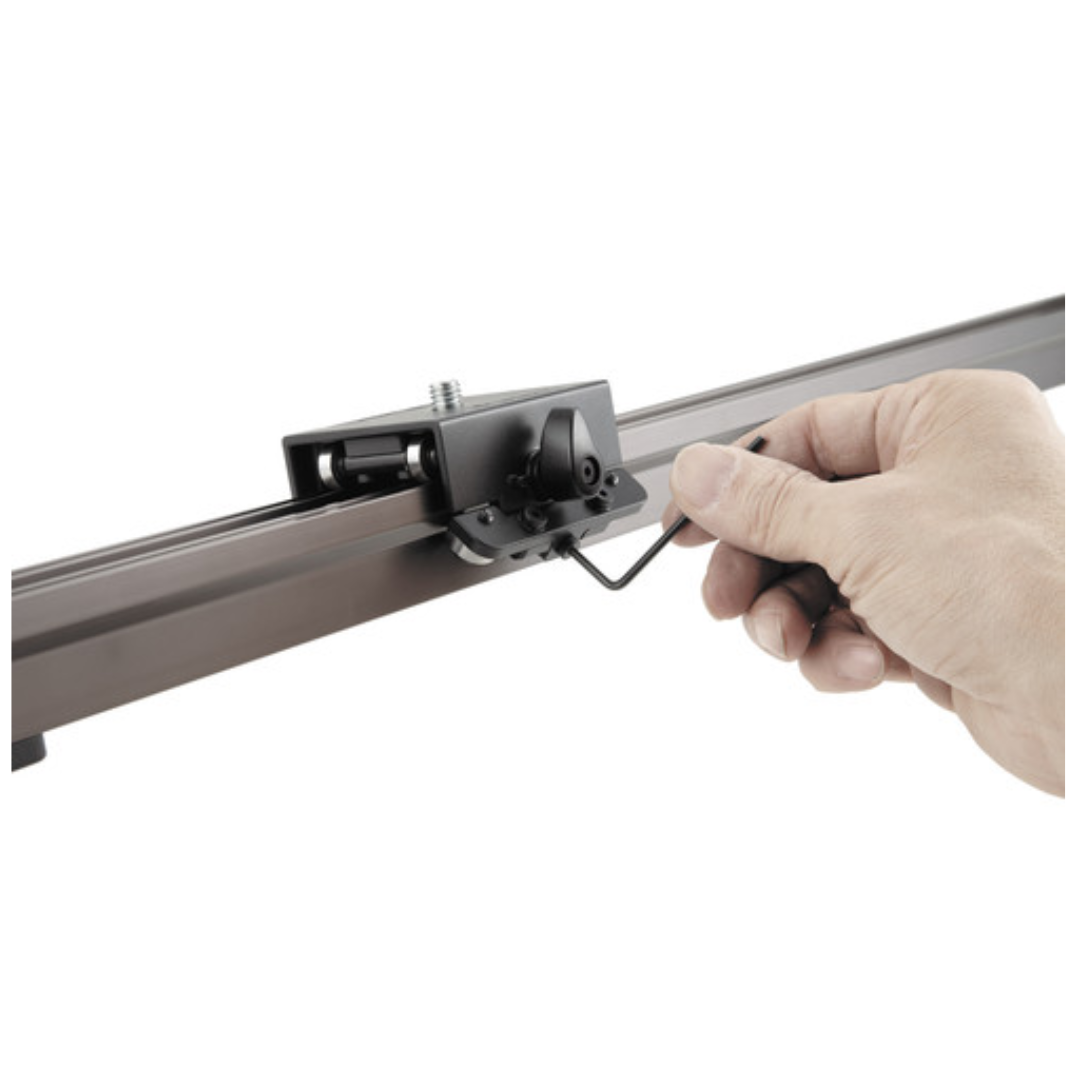

Libec ALX S4 is a 15.5" long camera slider with an integrated 75mm ball base flat bottom, capable of being attached directly to flat-base heads or 75mm bowl fluid heads. When sliding on a tabletop or flat surface usage, the load capacity is a maximum of 33 lb. For free rolling and smoothness, together with wobble-free operation, the carriage provides eight roller bearings placed on top of the rail and along both sides at angled positions. Adjust slide tension via a spring-loaded friction knob while locking the carriage in position on the rails via a brake knob at any desired position. Set pushing force exercised by the ball bearing on the rail using an included hexagon wrench.

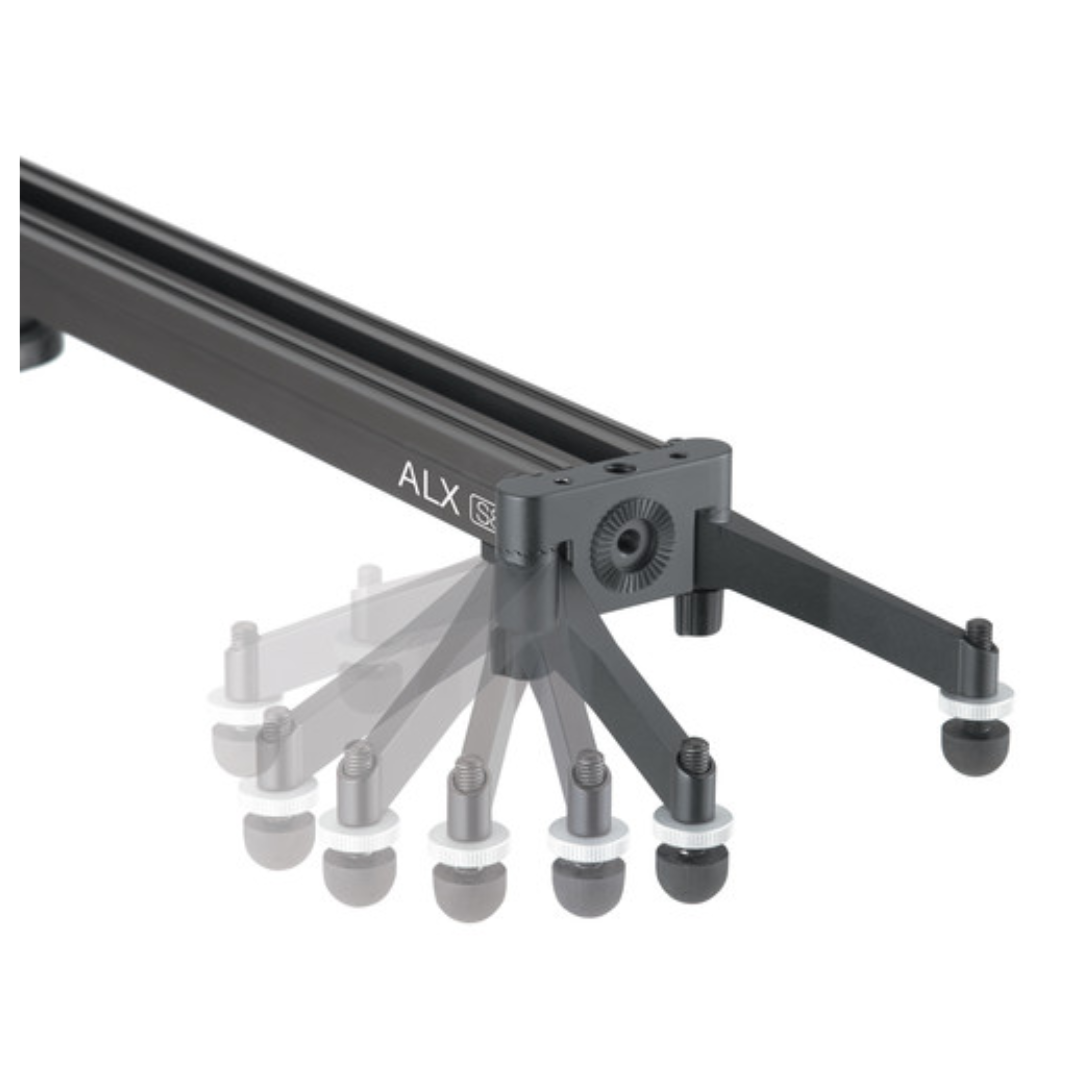

At both ends of the slider are 1/4"-20 and 3/8"-16 threads along with a rosette that is used for mounting different accessories. In the event that the slider will be mounted on tabletop or ground level, the slider comes with an integral leg of height-adjusting feet to level uneven surfaces. The legs have fold-up position against the slider's side as part of space-saving storage; they are clamped in with thumb knobs. Removing the knobs entirely permits you to remove the legs entirely and replace the 15.5" rail with individually purchasable 32.6" or 47" rail lengths.

Key Features

12" slide range with a 33 lb payload

33 lb load capacity when mounted on a tabletop or flat surface

Dual-base tripod mount adapter and bowl clamp for mounting on a tripod with a flat-base or 75mm ball head

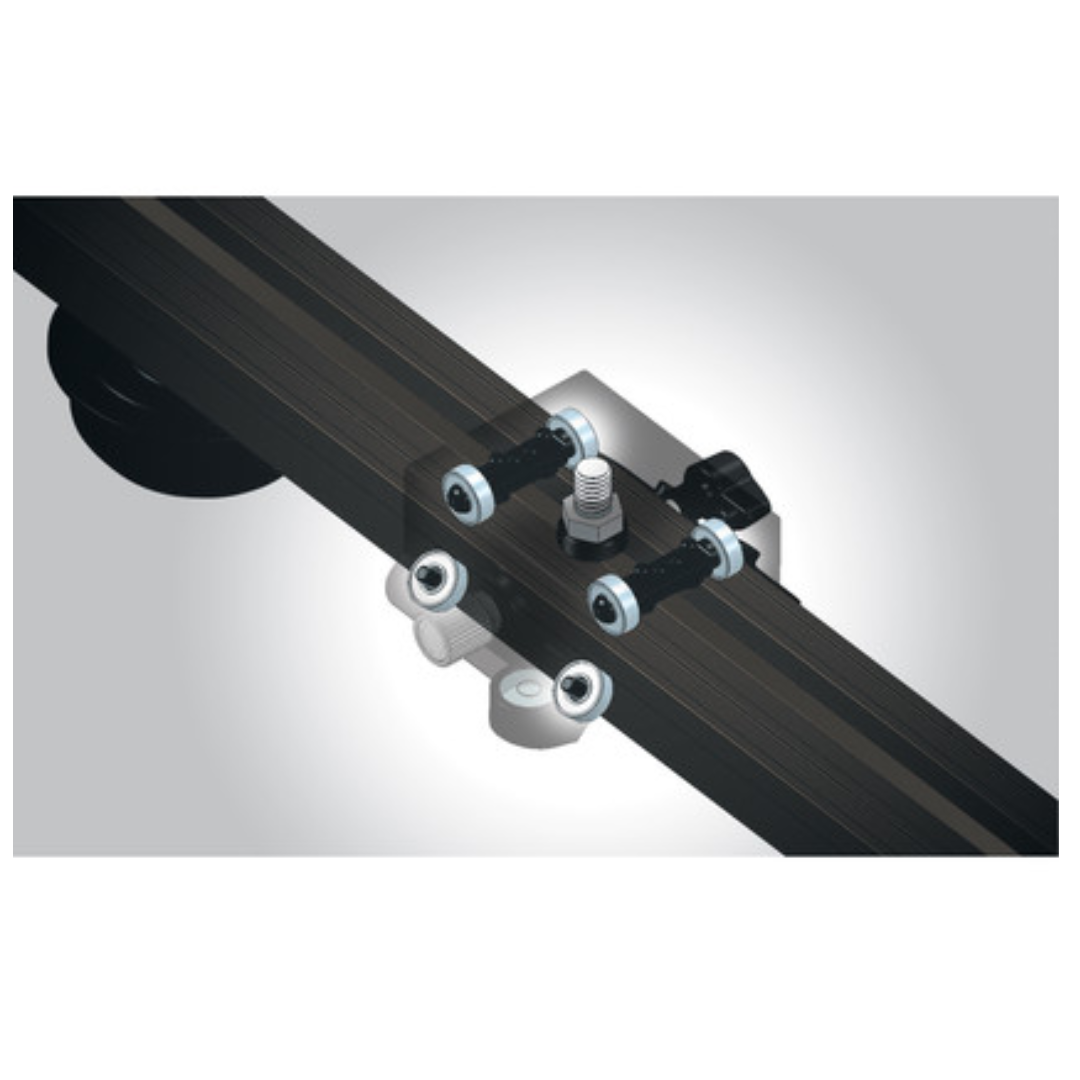

Eight ball bearings at top and sides of rail enable quiet, wobble-free motion

Tension/friction knob, brake knob, and level provided by bubble

15.5" rail replaceable with optional 32.6" or 47" rail lengths

Collapsible tabletop legs simplify setup and storing

Adjustable height feet

Comes in padded carrying case with fixing handle and maintenance kit
